Check Valve DN15(1/2") H71

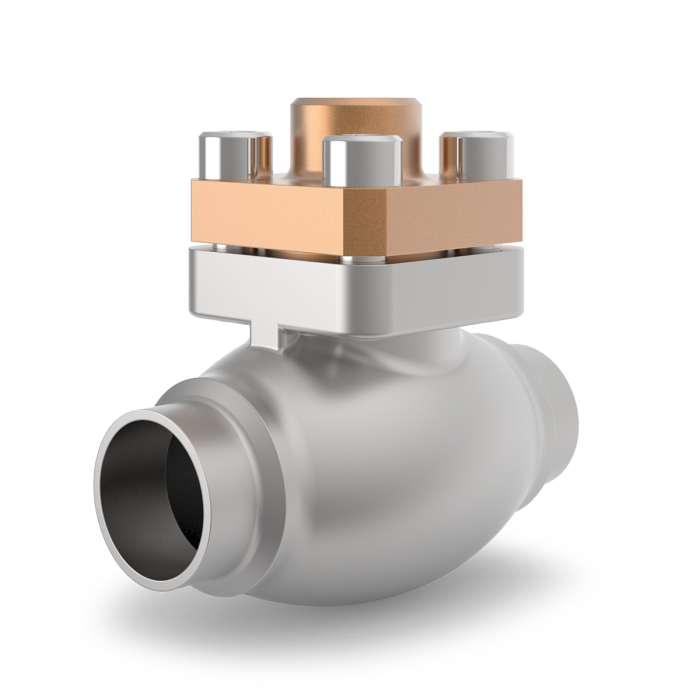

The product shown in the picture may differ from the product sold.
Check Valve DN15(1/2") H71
Article-No.: 05416.1521.0001
Price
POR
Description
cryogenic check valve DN15 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
spring CW452K bronze opening pressure appr. 0.1bar
"connection butt weld for pipe ø21.3mm x 2.0mm / 1/2""S10"
face to face 85mm
height 71mm
seal disc PTFE/25%carbon filled
Leakage rates will be provided on request
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
spring CW452K bronze opening pressure appr. 0.1bar
"connection butt weld for pipe ø21.3mm x 2.0mm / 1/2""S10"
face to face 85mm
height 71mm
seal disc PTFE/25%carbon filled
Leakage rates will be provided on request
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 05416.1521.0001 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_05416 |
| Type (Series) | 05416 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| Opening pressure difference | 0,1 bar |
| nominal size | DN 15 |
| Nominal pressure | PN 50 |
| max. lift | 12.0 |
| Kvs-value | 4.3 MQH |
| body material | 1.4308 |
| CV-Value | 5,0 gal/min |
| China approval | TS2700G39-2025 |
| Connection dimension inlet | 21,3 x 2,0 / 1/2'' S10 |
| Connection dimension outlet | 21,3 X 2,0 / 1/2'' S10 |
| Connection inlet | welding end |
| Connection outlet | welding end |
| Canada approval | CRN0C229635C |
Related Type
Datasheet ID: CR_05416

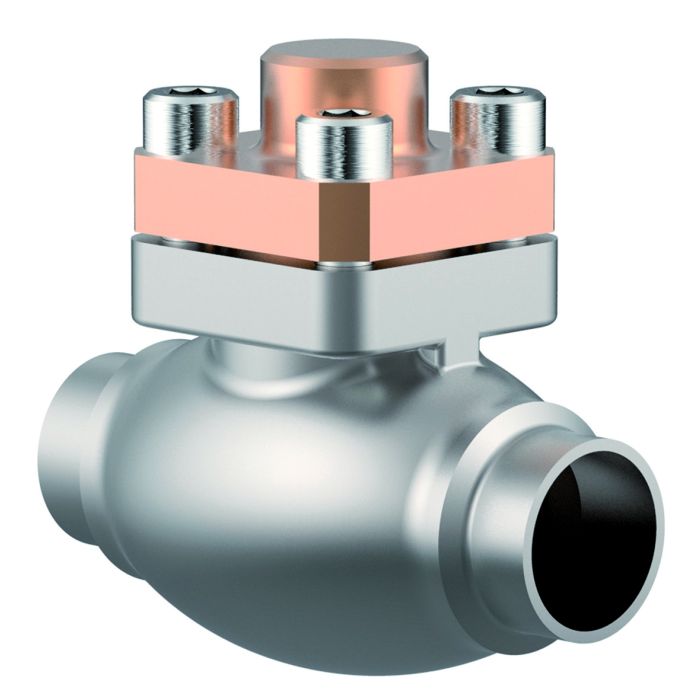

Type 05416 - Check Valve
