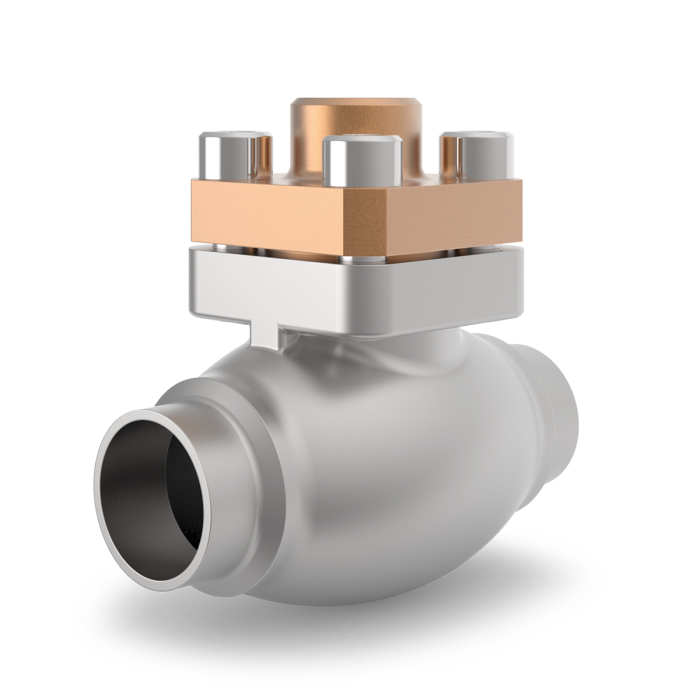

Check Valve DN25(1") H75
The product shown in the picture may differ from the product sold.
Check Valve DN25(1") H75
Article-No.: 05416.2533.0003
Price
POR
Description
cryogenic check valve DN25 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
spring CW452K bronze opening pressure appr. 0.1bar
connection butt weld for pipe ø33.4mm x 3.38mm (S40)
face to face 115mm
height 75mm
seal disc PTFE/25%carbon filled
Leakage rates will be provided on request
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
spring CW452K bronze opening pressure appr. 0.1bar
connection butt weld for pipe ø33.4mm x 3.38mm (S40)
face to face 115mm
height 75mm
seal disc PTFE/25%carbon filled
Leakage rates will be provided on request
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 05416.2533.0003 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_05416 |
| Type (Series) | 05416 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| Opening pressure difference | 0,1 bar |
| nominal size | DN 25 |
| Nominal pressure | PN 50 |
| max. lift | 12.0 |
| Kvs-value | 11.5 MQH |
| body material | 1.4308 |
| CV-Value | 13,4 gal/min |
| China approval | TS2700G39-2025 |
| Connection dimension inlet | 33,7 x 3,2 / 1'' S40 |
| Connection dimension outlet | 33,7 X 3,2 / 1'' S40 |
| Connection inlet | welding end |
| Connection outlet | welding end |
| Canada approval | CRN0C229635C |
Related Type
Datasheet ID: CR_05416

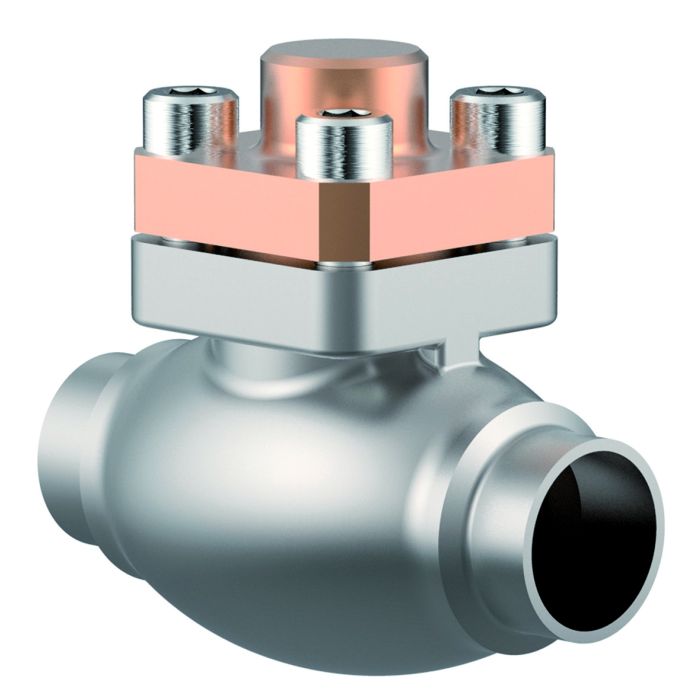

Type 05416 - Check Valve
Datasheet ID: CR_05416
