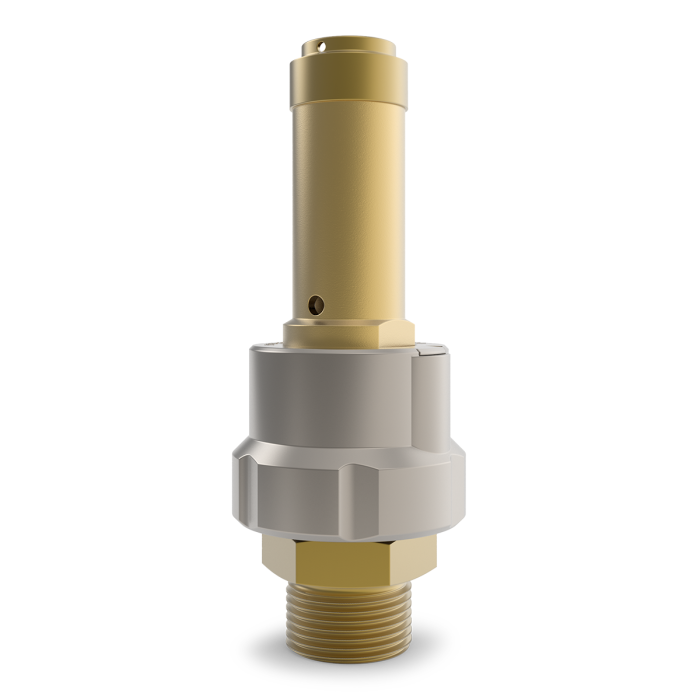

Safety Valve DN15(1/2") d0 12
Click on the product image for a larger view.
Safety Valve DN15(1/2") d0 12
Article-No.: 06217.0400.1001
Price
POR
Description
Safety Valve, type tested
for air and similar gases
working temperature -30°C up to +130°C
bonnet CW614N brass open with lifting device
inlet CW617N brass 1/2"BSPP male thread
outlet CW617N brass with discharge holes
disc FPM (Viton)
orifice 12.0mm
spring 1.4571
threaded end 14.0mm
with protective hood for safer discharge
of the mass flow
for air and similar gases
working temperature -30°C up to +130°C
bonnet CW614N brass open with lifting device
inlet CW617N brass 1/2"BSPP male thread
outlet CW617N brass with discharge holes
disc FPM (Viton)
orifice 12.0mm
spring 1.4571
threaded end 14.0mm
with protective hood for safer discharge
of the mass flow
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06217.0400.1001 |
|---|---|
| Solution | Air Gases |
| Solution Area | Storage, Processes |
| HEROSE Type Reference | IN_06216_06217_wpc |
| Type (Series) | 06217 |
| Maximum allowable temperature | -30.0 °C |
| Maximum allowable temperature | 200.0 °C |
| Opening pressure difference | 10% |
| body material | CW617N |
| China approval | TSF700D36-2025 |
| Connection dimension inlet | 1/2'' |
| Connection inlet | male thread BSPP |
| Canada approval | CRN 0G7343.5C |
| Pressure range BAR | 0,20 - 3,19 bar |
| Pressure range KPA | 20,00 - 319,00 kPa |
| Pressure range PSI | 2,90 - 46,39 PSI |
