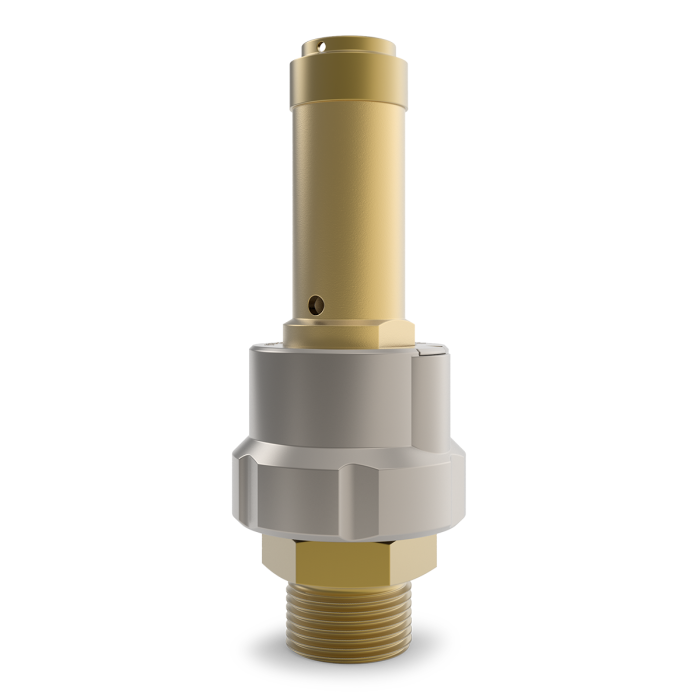

Safety Valve DN20(3/4") d0 15
Click on the product image for a larger view.
Safety Valve DN20(3/4") d0 15
Article-No.: 06217.0600.0001
Price
POR
Description
Safety Valve, type tested
for air and similar gases
temperature range -30°C up to +130°C
bonnet CW614N brass open with lifting device
inlet CW617N brass 3/4"BSPP male thread
outlet CW617N brass free blow off
disc FPM (Viton)
orifice 15.0mm
spring 1.1200 (carbon steel, galvanized)
threaded end 16.0mm
with protective hood for safer discharge
of the mass flow
for air and similar gases
temperature range -30°C up to +130°C
bonnet CW614N brass open with lifting device
inlet CW617N brass 3/4"BSPP male thread
outlet CW617N brass free blow off
disc FPM (Viton)
orifice 15.0mm
spring 1.1200 (carbon steel, galvanized)
threaded end 16.0mm
with protective hood for safer discharge
of the mass flow
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06217.0600.0001 |
|---|---|
| Solution | Air Gases |
| Solution Area | Storage, Processes |
| HEROSE Type Reference | IN_06216_06217_wpc |
| Type (Series) | 06217 |
| Maximum allowable temperature | -30.0 °C |
| Maximum allowable temperature | 130.0 °C |
| Opening pressure difference | 10% |
| body material | CW617N |
| China approval | TSF700D36-2025 |
| Connection dimension inlet | 3/4'' |
| Connection inlet | male thread BSPP |
| Canada approval | CRN 0G7343.5C |
| Pressure range BAR | 0,20 - 20,00 bar |
| Pressure range KPA | 20,00 - 2.000,00 kPa |
| Pressure range PSI | 2,90 - 290,00 PSI |
Related Type
Datasheet ID: IN_06216_06217_wpc
