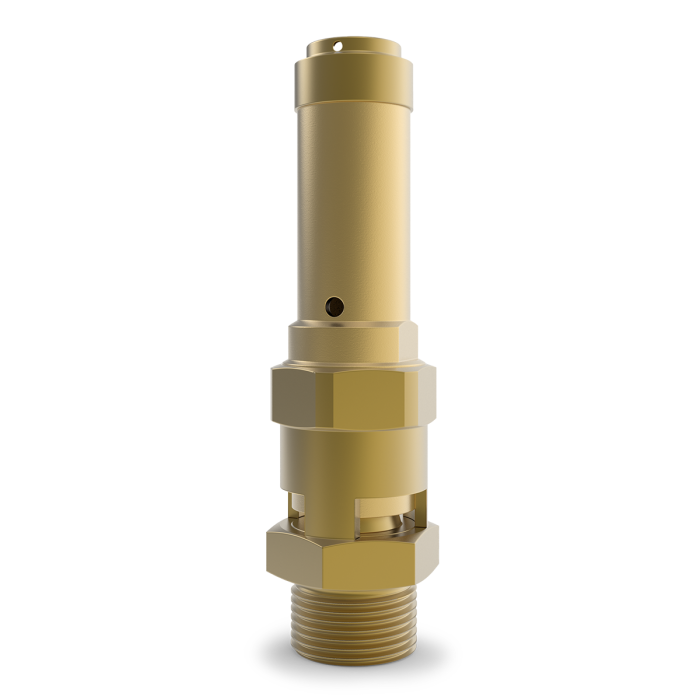

Safety Valve DN20(3/4") d0 15
The product shown in the picture may differ from the product sold.
Safety Valve DN20(3/4") d0 15
Article-No.: 06217.0600.0300
Price
POR
Description
Safety Valve, type tested
for air and similar gases
working temperature -25°C up to +200°C
bonnet CW614N brass open with lifting device
inlet CW509L brass 3/4"BSPP male thread
outlet CW509L brass with discharge holes
disc PTFE
orifice 15.0mm
spring 1.1200 st. zinc plated
threaded end 16.0mm
for air and similar gases
working temperature -25°C up to +200°C
bonnet CW614N brass open with lifting device
inlet CW509L brass 3/4"BSPP male thread
outlet CW509L brass with discharge holes
disc PTFE
orifice 15.0mm
spring 1.1200 st. zinc plated
threaded end 16.0mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06217.0600.0300 |
|---|---|
| Solution | Air Gases, Industry |
| Solution Area | Storage, Processes, Compressed Air |
| HEROSE Type Reference | IN_06216_06217 |
| Type (Series) | 06217 |
| Maximum allowable temperature | -40.0 °C |
| Maximum allowable temperature | 200.0 °C |
| Opening pressure difference | 10% |
| body material | CW617N |
| China approval | TSF700D36-2029 |
| Connection dimension inlet | 3/4'' |
| Connection inlet | male thread BSPP |
| Canada approval | CRN 0G7343.5C |
| Pressure range BAR | 2,00 - 2,69 bar |
| Pressure range KPA | 200,00 - 269,00 kPa |
| Pressure range PSI | 29,00 - 39,14 PSI |
| Disc seal | P |
Related Type
Datasheet ID: IN_06216_06217
Type 06216, Type 06217
Datasheet ID: IN_06216_06217
