Sicherheitsventil 1/2"NPT/1"NPT do7

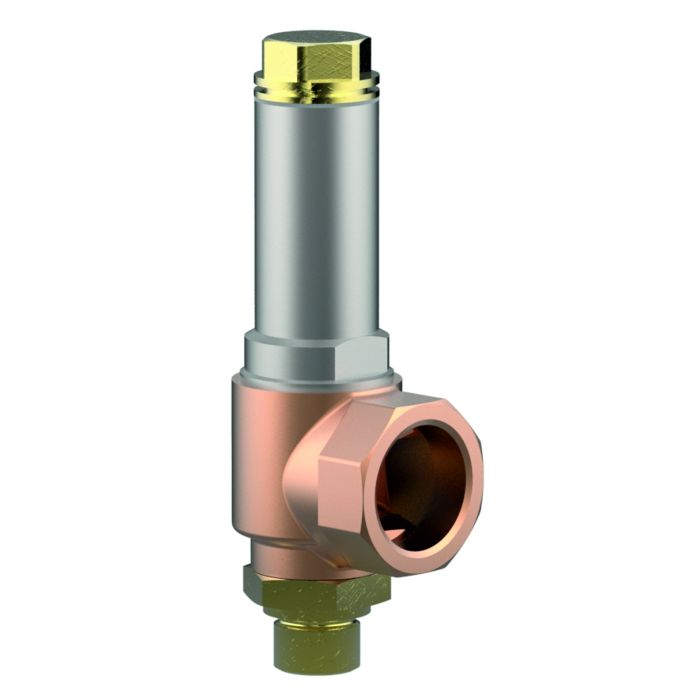

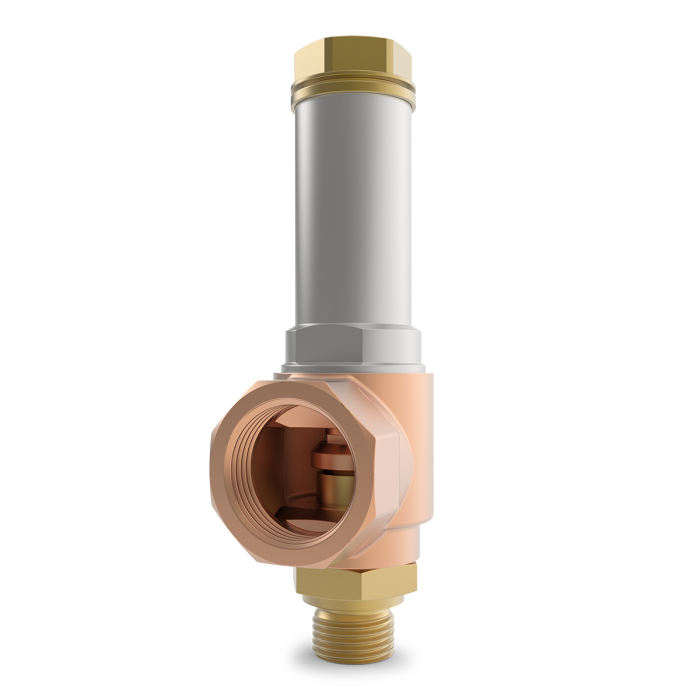

Click on the product image for a larger view.
Sicherheitsventil 1/2"NPT/1"NPT do7
Article-No.: 06388.0704.6040
Price
POR
Description
Safety Valve angle type, type tested
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +185°C
bonnet 1.4308/CF8 st.st. closed without lifting device
inlet CW614N brass 1/2"NPT male thread
outlet CC491K bronze 1"NPT female thread
disc PTFE/Electrocarbon 25%
orifice 7.0mm
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +185°C
bonnet 1.4308/CF8 st.st. closed without lifting device
inlet CW614N brass 1/2"NPT male thread
outlet CC491K bronze 1"NPT female thread
disc PTFE/Electrocarbon 25%
orifice 7.0mm
Delivery Time:
4 week(s)
More Information
| SKU | 06388.0704.6040 |
|---|---|
| Delivery Time | 4 |
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| Type (Series) | 06388 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 185.0 °C |
| Opening pressure difference | 5% |
| body material | CC491K |
| China approval | TSF700D36-2025 |
| Connection dimension inlet | 1/2'' |
| Connection dimension outlet | 1'' |
| Connection inlet | male thread NPT |
| Connection outlet | female thread NPT |
| Canada approval | CRN OG7343.5C |
| Pressure range BAR | 3,30 - 50,00 bar |
| Pressure range KPA | 330,00 - 5.000,00 kPa |
| Pressure range PSI | 47,85 - 725,00 PSI |
