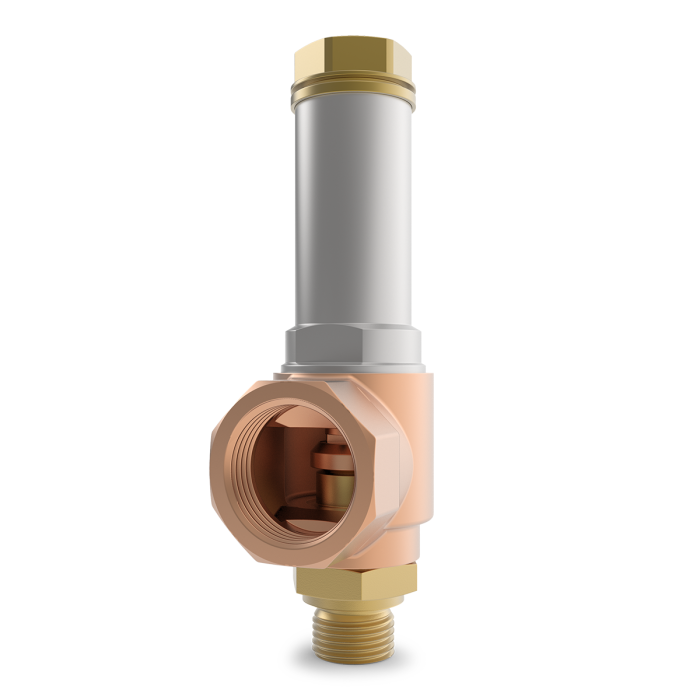

Safety Valve DN20(3/4") d0 10.5
The product shown in the picture may differ from the product sold.
Safety Valve DN20(3/4") d0 10.5
Article-No.: 06388.1006.9040
Price
POR
Description
Safety Valve angle type, type tested
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +185°C
bonnet 1.4308/CF8 st.st. closed without lifting device
inlet CW614N brass 3/4"BSPP male thread
outlet CC491K bronze 1"BSPP female thread
disc PTFE/Electrocarbon 25%
orifice 10.5mm
body with relief bore
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +185°C
bonnet 1.4308/CF8 st.st. closed without lifting device
inlet CW614N brass 3/4"BSPP male thread
outlet CC491K bronze 1"BSPP female thread
disc PTFE/Electrocarbon 25%
orifice 10.5mm
body with relief bore
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06388.1006.9040 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_06388_2 |
| Type (Series) | 06388 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 185.0 °C |
| Opening pressure difference | 5% |
| body material | CC491K |
| China approval | TSF700D36-2029 |
| Connection dimension inlet | 3/4'' |
| Connection dimension outlet | 1'' |
| Connection inlet | male thread BSPP |
| Connection outlet | female thread BSPP |
| Canada approval | CRN 0G7343.5C |
| Pressure range BAR | 2,90 - 50,00 bar |
| Pressure range KPA | 290,00 - 5.000,00 kPa |
| Pressure range PSI | 42,05 - 725,00 PSI |
| Disc seal | K |

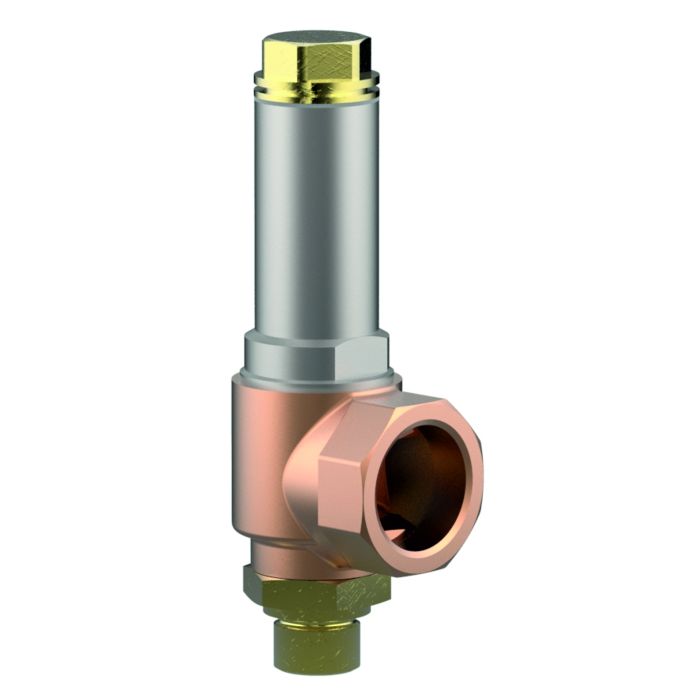

Related Type
Datasheet ID: CR_06388_2
Type 06388
Datasheet ID: CR_06388_2
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
