Changeover Valve DN25(1")

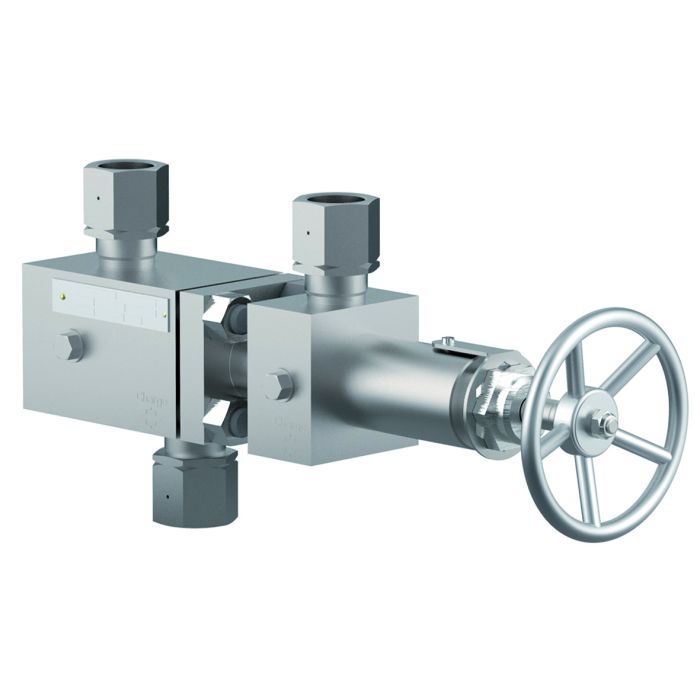

The product shown in the picture may differ from the product sold.
Changeover Valve DN25(1")
Article-No.: 06401.0250.9045
Price
POR
Description
Cryogenic Changeover Valves DN25 PN125
for cryogenic gases
for oxygen service (up to 50bar)
cleaned and degreased
working temperature -196°C up to +185°C
inlet 1.4571 st.st. 1"BSPP locking sleeve
outlet 1.4571 st.st. 1"BSPP locking sleeve (2x)
test connection plug 1/4"BSPP (2x)
seal disc PCTFE
outlet distance 160mm
for cryogenic gases
for oxygen service (up to 50bar)
cleaned and degreased
working temperature -196°C up to +185°C
inlet 1.4571 st.st. 1"BSPP locking sleeve
outlet 1.4571 st.st. 1"BSPP locking sleeve (2x)
test connection plug 1/4"BSPP (2x)
seal disc PCTFE
outlet distance 160mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06401.0250.9045 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_06401_5 |
| Type (Series) | 06401 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 185.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 25 |
| Nominal pressure | PN 125 |
| Kvs-value | 13.0 MQH |
| body material | 1.4571 |
| CV-Value | 15,0 gal/min |
| Connection dimension inlet | G1 |
| Connection dimension outlet | G1 |
| Connection inlet | SPANNMUFFE |
| Connection outlet | SPANNMUFFE |
Related Type
Datasheet ID: CR_06401_5
Type 06401 - Bellow Sealed Changeover Valve
Datasheet ID: CR_06401_5
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
