Changeover Valve DN25(1")

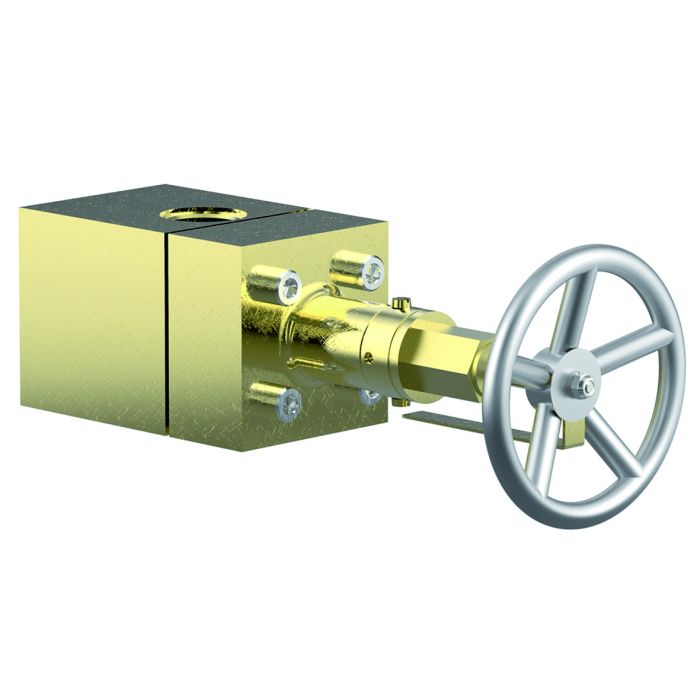

The product shown in the picture may differ from the product sold.
Changeover Valve DN25(1")
Article-No.: 06405.0250.0000
Price
POR
Description
Changeover Valve DN25 PN45
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +185°C
inlet CW614N brass 1"BSPP female thread
outlet CW614N brass 1"BSPP female thread (2x)
test connection 1/4"BSPP (2x)
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +185°C
inlet CW614N brass 1"BSPP female thread
outlet CW614N brass 1"BSPP female thread (2x)
test connection 1/4"BSPP (2x)
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06405.0250.0000 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_06405 |
| Type (Series) | 06405 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 185.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 25 |
| Nominal pressure | PN 45 |
| Kvs-value | 14.0 MQH |
| body material | CW614N |
| CV-Value | 16,1 gal/min |
| Connection dimension inlet | 1" |
| Connection dimension outlet | 1'' |
| Connection inlet | female thread BSPP |
| Connection outlet | female thread BSPP |
