Changeover Valve DN15(1/2")

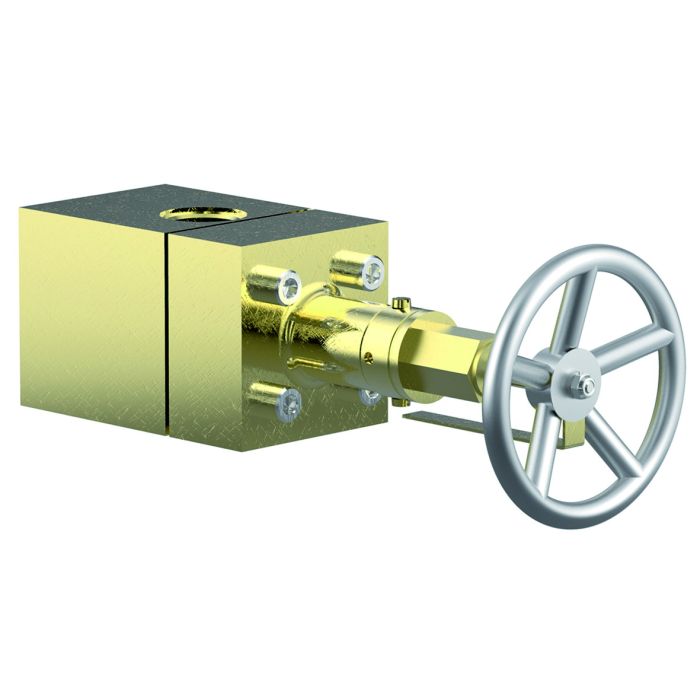

The product shown in the picture may differ from the product sold.
Changeover Valve DN15(1/2")
Article-No.: 06405.2047.C020
Price
POR
Description
Changeover Valve DN15 PN40
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +185°C
inlet union type fitting for st.st. pipe Ø 33,7x3,2mm,
outlet CW614N brass 2x BSPP 1/2" female thread
2x BSPP 1/2" female thread
with st.st. screw plug
test connection CW614N brass 2x BSPT 1/4" female thread
with st.st.screw plug
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +185°C
inlet union type fitting for st.st. pipe Ø 33,7x3,2mm,
outlet CW614N brass 2x BSPP 1/2" female thread
2x BSPP 1/2" female thread
with st.st. screw plug
test connection CW614N brass 2x BSPT 1/4" female thread
with st.st.screw plug
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06405.2047.C020 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_06405 |
| Type (Series) | 06405 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 185.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 15 |
| Nominal pressure | PN 40 |
| Kvs-value | 6.0 MQH |
| body material | CW614N |
| CV-Value | 6,9 gal/min |
| Connection dimension inlet | 33,7 x 3,2 / 1'' S40 |
| Connection dimension outlet | 1/2'' |
| Connection inlet | SCHWEIßKUGELBUCHSE |
| Connection outlet | female thread BSPP |
