#OLD! replaced by 06405.0250.6001
The product shown in the picture may differ from the product sold.
#OLD! replaced by 06405.0250.6001
Article-No.: 06405.2510.6360
Price
POR
Description

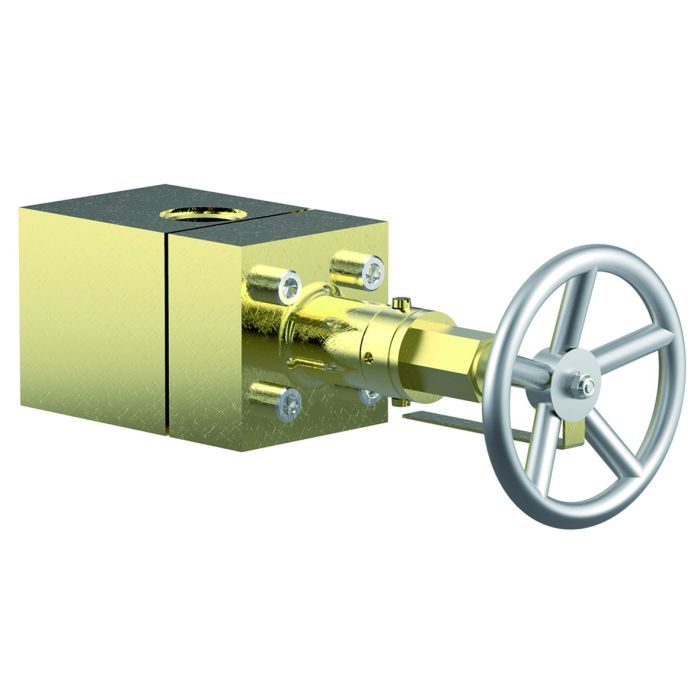

Changeover Valve DN25 PN40
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +185°C
inlet CC491K 1" NPTF female thread
outlet CC491K 1" NPTF female thread (2x)
test connection 1" NPTF female thread (2x)
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +185°C
inlet CC491K 1" NPTF female thread
outlet CC491K 1" NPTF female thread (2x)
test connection 1" NPTF female thread (2x)
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06405.2510.6360 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_06405 |
| Type (Series) | 06405 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 185.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 25 |
| Nominal pressure | PN 40 |
| Kvs-value | 14.0 MQH |
| body material | CC491K |
| CV-Value | 16,1 gal/min |
| Connection dimension inlet | 1" |
| Connection dimension outlet | 1'' |
| Connection inlet | female thread NPT |
| Connection outlet | female thread NPT |
Related Type
Datasheet ID: CR_06405
Type 06405 - Changeover Valve
Datasheet ID: CR_06405
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
