Safeyt Valve DN20(3/4") d0 6

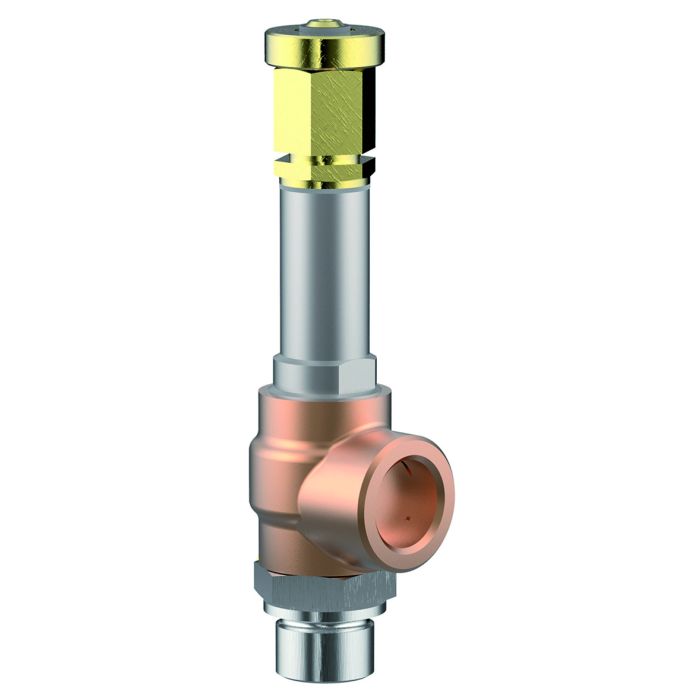

The product shown in the picture may differ from the product sold.
Safeyt Valve DN20(3/4") d0 6
Article-No.: 06478.1518.9140
Price
POR
Description
Safety Valve angle type, type tested
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +150°C
bonnet 1.4305 st.st. closed with lifting device
inlet 1.4301 st.st. M26 x 1.5mm 18-L male thread
outlet CC491K bronze M26 x 1.5mm 18-L male thread
disc PTFE/Electrocarbon 25%
orifice 6.0mm
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +150°C
bonnet 1.4305 st.st. closed with lifting device
inlet 1.4301 st.st. M26 x 1.5mm 18-L male thread
outlet CC491K bronze M26 x 1.5mm 18-L male thread
disc PTFE/Electrocarbon 25%
orifice 6.0mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06478.1518.9140 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_06478 |
| Type (Series) | 06478 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 150.0 °C |
| Opening pressure difference | 10% |
| body material | CC491K |
| China approval | TSF700D36-2029 |
| Connection dimension inlet | M26 X 1,5 |
| Connection dimension outlet | M26 X 1,5 |
| Connection inlet | male thread for metric |
| Connection outlet | metric male thread |
| Pressure range BAR | 0,40 - 55,00 bar |
| Pressure range KPA | 40,00 - 5.500,00 kPa |
| Pressure range PSI | 5,80 - 797,50 PSI |
| Disc seal | K |
