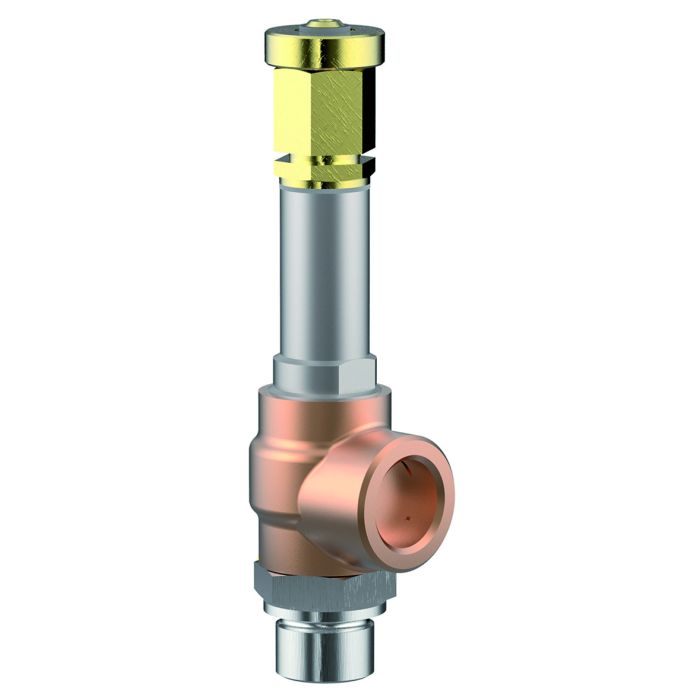

Safety Valve DN15(1/2") d0 6

Article-No.: 06478P0400.0800
Description
Safety Valve angle type, type tested
for cryogenic gases in TPED 2010/35/EU
for CO2- applications: minimum pressure 10bar, maximum pressure 40bar
cleaned and degreased for oxygen services
working temperature -196°C up to +150°C
bonnet 1.4305 st.st. closed with lifting device
inlet 1.4301 st.st. 1/2"BSPP male thread
outlet CC491K bronze with mounted elbow
disc PTFE/Electrocarbon 25%
orifice 6.0mm
installation position: tested for vertical installation
with outlet mounted elbow bent down
More Information
SKU 06478P0400.0800
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
HEROSE Type Reference CR_06478
Type (Series) 06478
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 150.0 °C
Opening pressure difference 10%
body material CC491K
China approval TSF700D36-2029
Connection dimension inlet 1/2''
Connection dimension outlet 18
Connection inlet male thread BSPP
Connection outlet socket end - elbow
Pressure range BAR 4,50 - 40,00 bar
Pressure range KPA 450,00 - 4.000,00 kPa
Pressure range PSI 65,25 - 580,00 PSI
Disc seal K
Approval TPED 2010/35/EU
