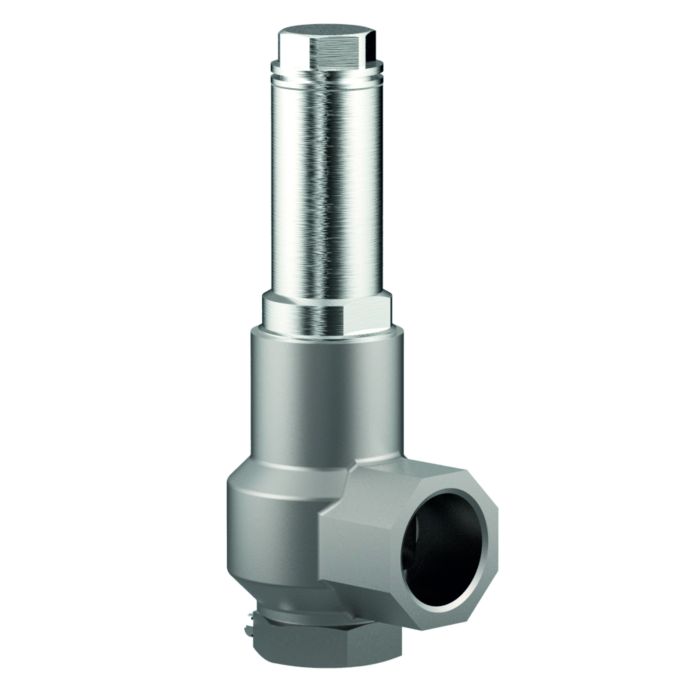

Safety Valve DN15(1/2") d0 15
The product shown in the picture may differ from the product sold.
Safety Valve DN15(1/2") d0 15
Article-No.: 06800.1504.0000
Price
POR
Description
bellow sealed safety valve angle type, type tested
for vapours, gases und fluids
cleaned and degreased for oxygen services
working temperature -270°C up to +225°C
bonnet 1.4308/CF8 st.st. closed without lifting device
inlet 1.4571 st.st. 1/2"BSPP female thread
outlet 1.4308 st.st. 1"BSPP female thread
disc 1.4541 st. st. metal to metal seated
orifice 15.0mm
for vapours, gases und fluids
cleaned and degreased for oxygen services
working temperature -270°C up to +225°C
bonnet 1.4308/CF8 st.st. closed without lifting device
inlet 1.4571 st.st. 1/2"BSPP female thread
outlet 1.4308 st.st. 1"BSPP female thread
disc 1.4541 st. st. metal to metal seated
orifice 15.0mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06800.1504.0000 |
|---|---|
| Solution | H2, LNG, Air Gases |
| Solution Area | Manufacturing, Transport, Storage, Application, Refueling, Processes |
| HEROSE Type Reference | CR_06800 |
| Type (Series) | 06800 |
| Maximum allowable temperature | -270.0 °C |
| Maximum allowable temperature | 225.0 °C |
| Opening pressure difference | 10% |
| body material | 1.4308 |
| China approval | TSF700D36-2029 |
| Connection dimension inlet | 1/2'' |
| Connection dimension outlet | 1'' |
| Connection inlet | female thread BSPP |
| Connection outlet | female thread BSPP |
| Pressure range BAR | 3,00 - 25,00 bar |
| Pressure range KPA | 300,00 - 2.500,00 kPa |
| Pressure range PSI | 43,50 - 362,50 PSI |
| Disc seal | M |
Related Type
Datasheet ID: CR_06800
Type 06800 with bellow seal
Datasheet ID: CR_06800
