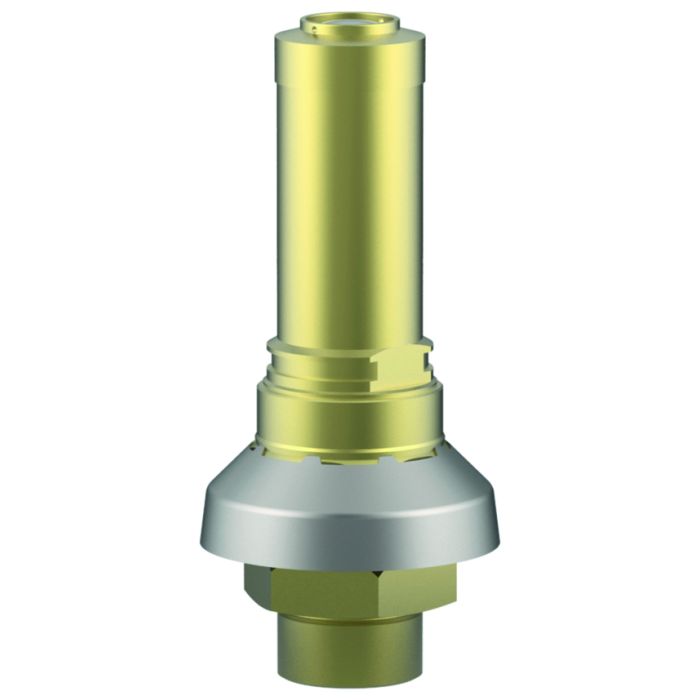

Safety Valve DN32(1 1/4") d0 31
The product shown in the picture may differ from the product sold.
Safety Valve DN32(1 1/4") d0 31
Article-No.: 06C01.A001.000116
Price
POR
Description
safety valve, type tested
for liquid, granular and powdery goods
all. working temperature -40°C till +200°C
bonnet CW614N closed with lifting device
inlet CW614N 1.1/4"BSPP male thread
outlet CW614N discharge holes with protecting cap
disc FPM (Viton)
orifice 31,0mm
spring 1.4571
with seal and sealing wire
for liquid, granular and powdery goods
all. working temperature -40°C till +200°C
bonnet CW614N closed with lifting device
inlet CW614N 1.1/4"BSPP male thread
outlet CW614N discharge holes with protecting cap
disc FPM (Viton)
orifice 31,0mm
spring 1.4571
with seal and sealing wire
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06C01.A001.000116 |
|---|---|
| Solution | Air Gases, Industry |
| Solution Area | Transport, Storage, Processes, Compressed Air, FKS |
| HEROSE Type Reference | IN_06C01 |
| Type (Series) | 06C01 |
| Maximum allowable temperature | -40.0 °C |
| Maximum allowable temperature | 200.0 °C |
| Opening pressure difference | 10% |
| body material | CW614N |
| Connection dimension inlet | 1.1/4'' |
| Connection inlet | male thread BSPP |
| Pressure range BAR | 2,00 - 2,99 bar |
| Pressure range KPA | 200,00 - 299,00 kPa |
| Pressure range PSI | 29,00 - 43,35 PSI |
| Material seat seal | FPM |
