Safety Valve DN25(1") d0 25

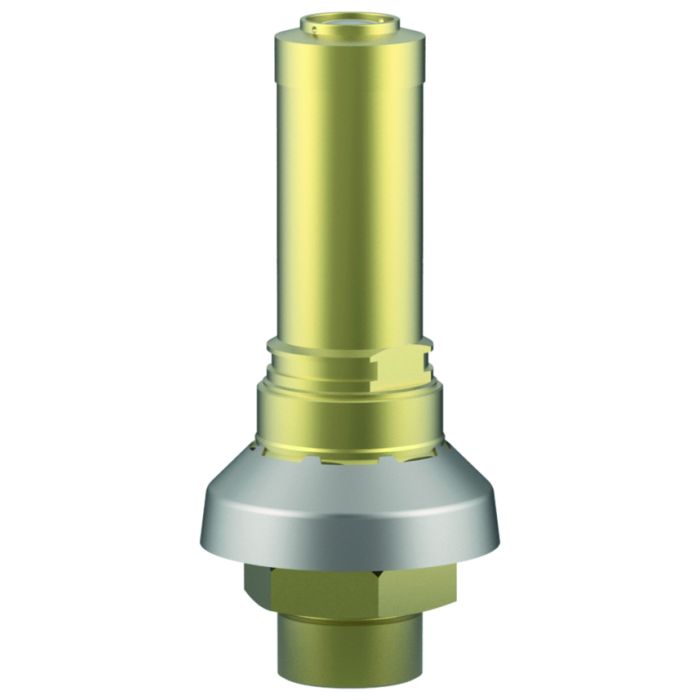

The product shown in the picture may differ from the product sold.
Safety Valve DN25(1") d0 25
Article-No.: 06C01.A002.000013
Price
POR
Description
safety valve, type tested
for liquid, granular and powdery goods
all. working temperature -40°C till +200°C
bonnet 1.4409 open with lifting device
inlet 1.4404 1"BSPP male thread
outlet 1.4404 discharge holes with protecting cap
disc FPM (Viton)
orifice 25,0mm
spring 1.4571
short design
for liquid, granular and powdery goods
all. working temperature -40°C till +200°C
bonnet 1.4409 open with lifting device
inlet 1.4404 1"BSPP male thread
outlet 1.4404 discharge holes with protecting cap
disc FPM (Viton)
orifice 25,0mm
spring 1.4571
short design
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06C01.A002.000013 |
|---|---|
| Solution | Air Gases, Industry |
| Solution Area | Transport, Storage, Processes, Compressed Air, FKS |
| HEROSE Type Reference | IN_06C01 |
| Type (Series) | 06C01 |
| Maximum allowable temperature | -40.0 °C |
| Maximum allowable temperature | 200.0 °C |
| Opening pressure difference | 10% |
| body material | 1.4404 |
| Connection dimension inlet | 1" |
| Connection inlet | male thread BSPP |
| Pressure range BAR | 2,30 - 3,00 bar |
| Pressure range KPA | 230,00 - 300,00 kPa |
| Pressure range PSI | 33,35 - 43,50 PSI |
Related Type
Datasheet ID: IN_06C01
Type 06C01
Datasheet ID: IN_06C01
- Solution:
- Air Gases, Industry
- Solution Area:
- Transport, Storage, Processes, Compressed Air, FKS
