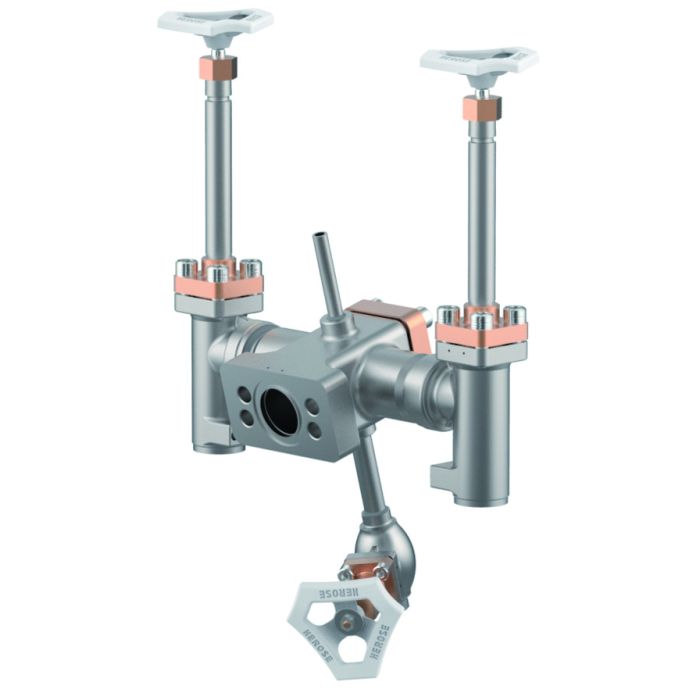

Fill Cluster DN25(1")

The product shown in the picture may differ from the product sold.
Description
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
inlet: Air Liquide-flange 120mm x 70mm, 15° angle
,,,,with check function and drain valve
non-return unit metal to metal sealed, leakage rate D acc. to EN12266-1
outlet: 2 x Globe valve angle type DN25
,,,, with bonnet extension H=270mm CC493K
,,,, socket end OD 33.4mm
Relief-connection: butt weld connection ø12mm x 2mm
Drain valve: DN15; bonnet CC493K
connection socket end OD 17.5mm
face to face 225mm
Live Stock: Out-Of Stock pcs (ON STOCK)
SKU | 07015.2533.5000 |
---|---|
Solution | LNG, Air Gases |
Solution Area | Transport, Storage, Refueling |
HEROSE Type Reference | CR_07015_2 |
Type (Series) | 07015 |
Maximum allowable temperature | -196.0 °C |
Maximum allowable temperature | 120.0 °C |
cleaned for oxygen service | ISO 23208 |
nominal size | DN 25 |
Nominal pressure | PN 50 |
Kvs-value | 11.5 MQH |
CV-Value | 13,4 gal/min |
Connection dimension inlet | DN40 PN50 |
Connection dimension outlet | 33,7 / 1'' |
Connection inlet | AIR LIQUIDE flange |
Connection outlet | socket weld |
Canada approval | CRN 0C22962.5C |
