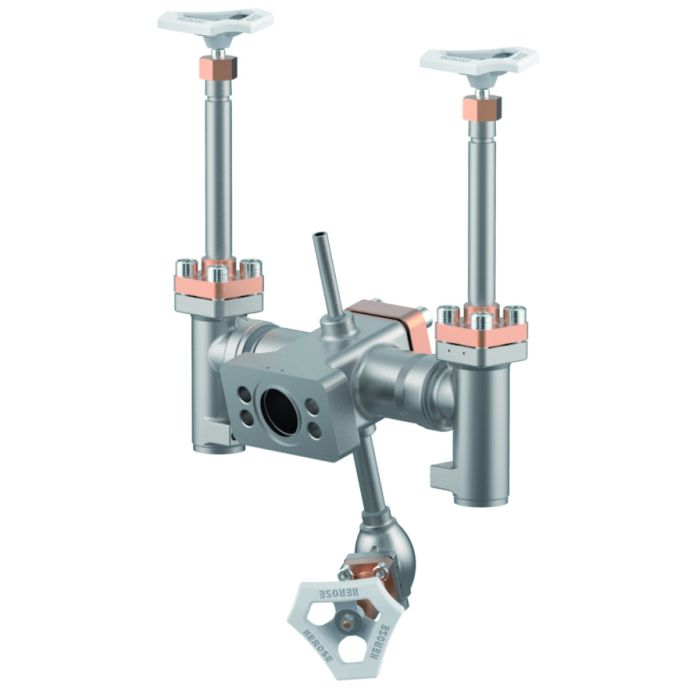

Fill Cluster DN25(1")

Article-No.: 07015.2533.9201
Description
Cryogenic fill cluster DN25 PN40
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
inlet flange DN40 EN1092-1 11B1, 15° angle
outlet 2 x Globe valve angle type DN25
,,,, with bonnet extension H=270mm CC493K
,,,, socket end OD 33.7mm
Relief-connection: butt weld connection ø12mm x 2mm
drain valve: DN15; bonnet CC493K
connection socket end OD 17.5mm
face to face 225mm
More Information
SKU 07015.2533.9201
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling
HEROSE Type Reference CR_07015_2
Type (Series) 07015
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 120.0 °C
cleaned for oxygen service ISO 23208
nominal size DN 25
Nominal pressure PN 40
Kvs-value 11.5 MQH
CV-Value 13,4 gal/min
Connection dimension inlet DN40 PN40
Connection dimension outlet 33,7 / 1''
Connection inlet flange DIN EN ISO 1092-1
Connection outlet socket weld
Canada approval CRN 0C22962.5C
