Fill Cluster DN40(1 1/2")

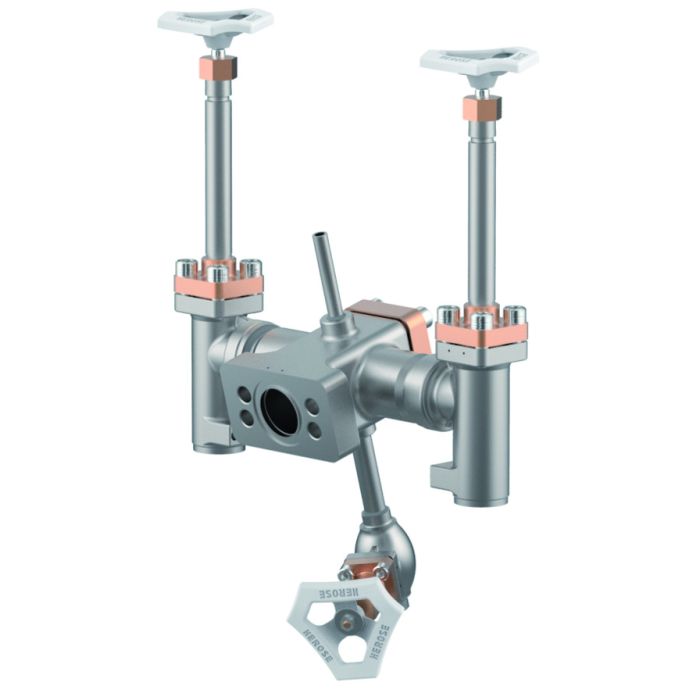

The product shown in the picture may differ from the product sold.
Fill Cluster DN40(1 1/2")
Article-No.: 07015.4048.0200
Price
POR
Description
Cryogenic fill cluster DN40 PN40
cleaned and degreased for oxygen service
with bonnet extension H=270mm
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
inlet flange DN40 EN1092-1 11B1, 15° angle
outlet 2 x Globe valve angle type DN40
socket end OD 48,3mm
drain valve: DN15; bonnet CC493K
connection socket end OD 17.5mm
cleaned and degreased for oxygen service
with bonnet extension H=270mm
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
inlet flange DN40 EN1092-1 11B1, 15° angle
outlet 2 x Globe valve angle type DN40
socket end OD 48,3mm
drain valve: DN15; bonnet CC493K
connection socket end OD 17.5mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 07015.4048.0200 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_07015_2 |
| Type (Series) | 07015 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 40 |
| Nominal pressure | PN 40 |
| Kvs-value | 60.0 MQH |
| CV-Value | 69,6 gal/min |
| Connection dimension inlet | DN40 PN40 |
| Connection dimension outlet | 48,3 / 1.1/2'' |
| Connection inlet | flange DIN EN ISO 1092-1 |
| Connection outlet | socket weld |
| Canada approval | CRN 0C22962.5C |
Related Type
Datasheet ID: CR_07015_2
Type 07015 - Fill cluster with check function
Datasheet ID: CR_07015_2
