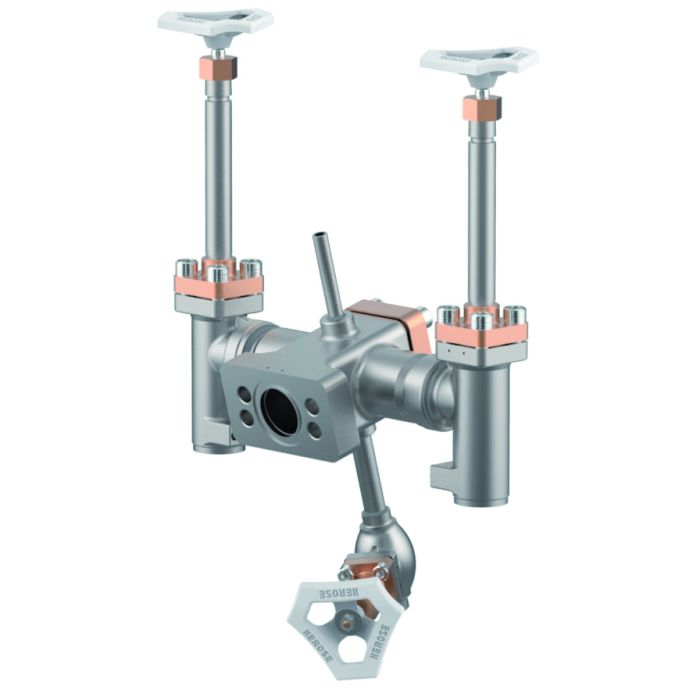

Fill Cluster DN40(1 1/2")

Article-No.: 07015.4048.9201
Description
Cryogenic fill cluster DN40 PN40
cleaned and degreased for oxygen service
with bonnet extension H=270mm
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
inlet flange DN40 EN1092-1 11B1, 15° angle
outlet 2 x Globe valve angle type DN40
,,,, socket end OD 48,3mm
Relief-connection: butt weld connection ø12mm x 2mm
drain valve: DN15; bonnet CC493K
connection socket end OD 17.5mm
face to face 225mm
More Information
SKU 07015.4048.9201
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling
HEROSE Type Reference CR_07015_2
Type (Series) 07015
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 120.0 °C
cleaned for oxygen service ISO 23208
nominal size DN 40
Nominal pressure PN 40
Kvs-value 60.0 MQH
CV-Value 69,6 gal/min
Connection dimension inlet DN40 PN40
Connection dimension outlet 48,3 / 1.1/2''
Connection inlet flange DIN EN ISO 1092-1
Connection outlet socket weld
Canada approval CRN 0C22962.5C
