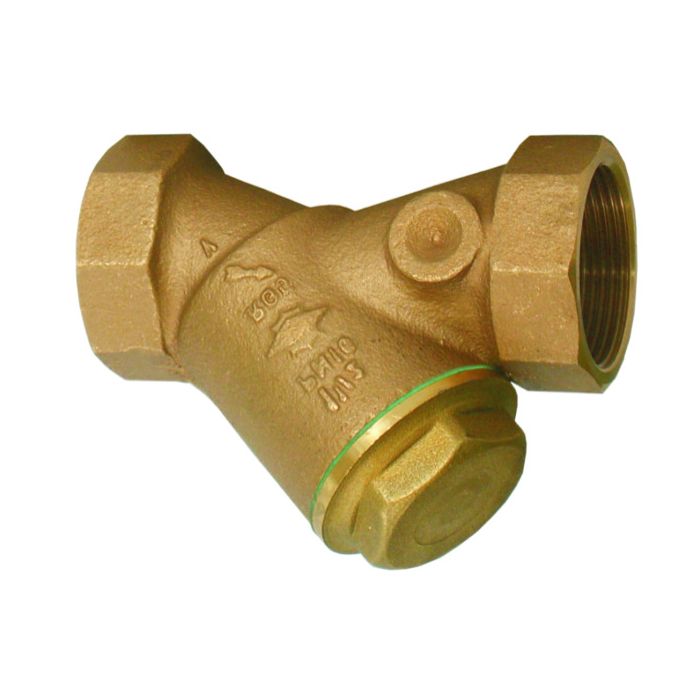

Strainer DN15(1/2") 25mesh
The product shown in the picture may differ from the product sold.
Strainer DN15(1/2") 25mesh
Article-No.: 08180.0400.9001
Price
POR
Description
Strainer PN40
Working temperatures and pressures:
up to max. 16,0 bar: -10°C/+14°F (263K) up to +120°C/+248°F(393K)
up to max. 10,0 bar: -10°C/+14°F (263K) up to +160°C/+320°F(433K)
up to max. 6,0 bar: -10°C/+14°F (263K) up to +200°C/+392°F(473K)
Body CC491K
Screen 1.4300 0,6mm mesh
Plug CW614N
Connection female thread 1/2" BSPP
face to face 65mm
With peg seal made of copper
Working temperatures and pressures:
up to max. 16,0 bar: -10°C/+14°F (263K) up to +120°C/+248°F(393K)
up to max. 10,0 bar: -10°C/+14°F (263K) up to +160°C/+320°F(433K)
up to max. 6,0 bar: -10°C/+14°F (263K) up to +200°C/+392°F(473K)
Body CC491K
Screen 1.4300 0,6mm mesh
Plug CW614N
Connection female thread 1/2" BSPP
face to face 65mm
With peg seal made of copper
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 08180.0400.9001 |
|---|---|
| Solution | Air Gases |
| Solution Area | Transport, Storage, Processes |
| HEROSE Type Reference | IN_08180_08181 |
| Type (Series) | 08180 |
| Maximum allowable temperature | -10.0 °C |
| Maximum allowable temperature | 200.0 °C |
| nominal size | DN 15 |
| Nominal pressure | PN 40 |
| body material | CC491K |
| Connection dimension inlet | 1/2'' |
| Connection dimension outlet | 1/2'' |
| Connection inlet | female thread BSPP |
| Connection outlet | female thread BSPP |
Related Type
Datasheet ID: IN_08180_08181
Type 08180, Type 08181
Datasheet ID: IN_08180_08181
