Gew-MU-DG-Schmutzf. DN15 G1/2 MW=0,25
Article-No.: 08413.0400.0001
Price
POR
Description

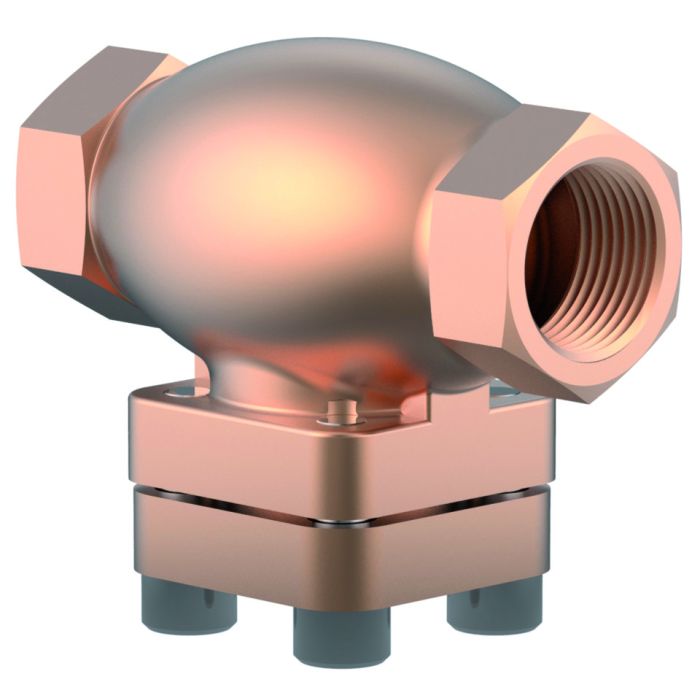

Cryogenic strainer DN15 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
screen 1.4301 st.st. mesh size 0.25mm ( 56 mesh)
cap CC493K bronze
connection 1/2"BSPP female thread
face to face 85mm , height 70mm
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
screen 1.4301 st.st. mesh size 0.25mm ( 56 mesh)
cap CC493K bronze
connection 1/2"BSPP female thread
face to face 85mm , height 70mm
Delivery Time:
5 week(s)
More Information
SKU | 08413.0400.0001 |
---|---|
Delivery Time | 5 |
Solution | LNG, Air Gases |
Solution Area | Transport, Storage, Refueling, Processes |
Type (Series) | 08413 |
Maximum allowable temperature | -196.0 °C |
Maximum allowable temperature | 120.0 °C |
cleaned for oxygen service | ISO 23208 |
nominal size | DN 15 |
Nominal pressure | PN 50 |
Kvs-value | 4.3 MQH |
body material | CC491K |
CV-Value | 5,0 gal/min |
Connection dimension inlet | 1/2'' |
Connection dimension outlet | 1/2'' |
Connection inlet | female thread BSPP |
Connection outlet | female thread BSPP |
Canada approval | CRN 0E14408.5C |
