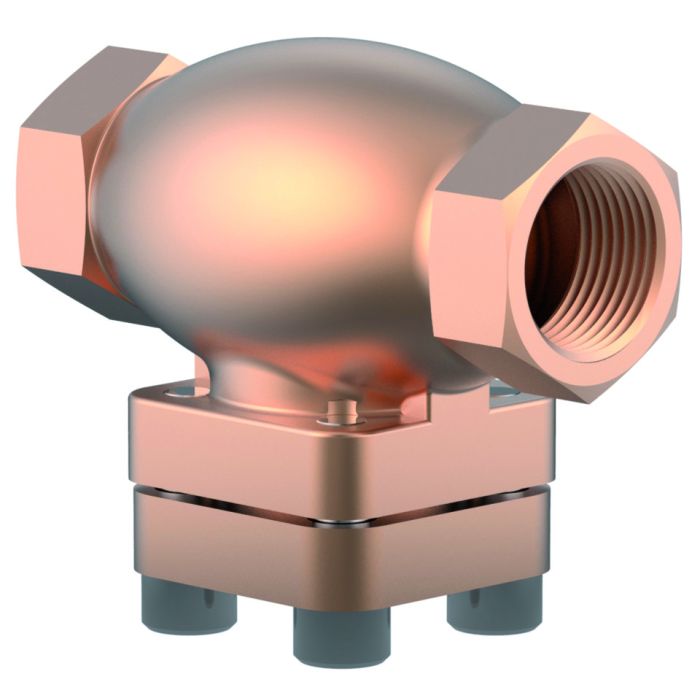

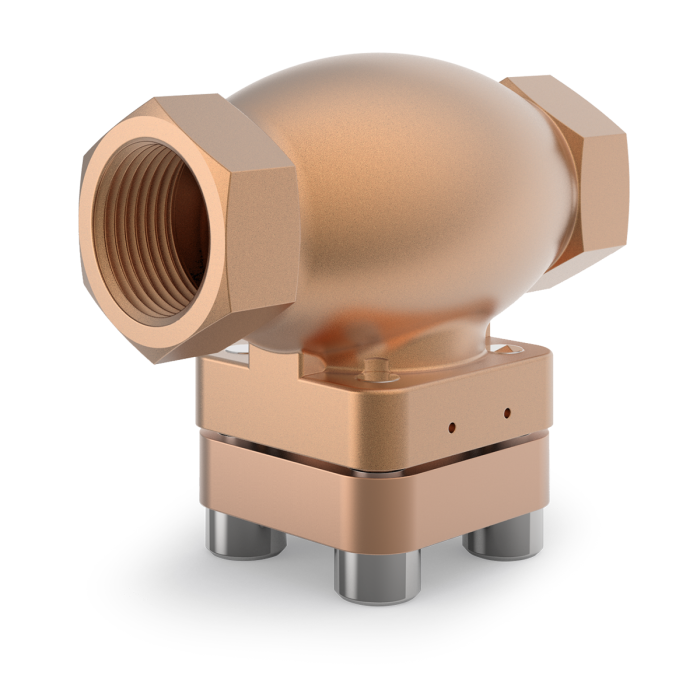

Strainer DN20(3/4") 56mesh
The product shown in the picture may differ from the product sold.
Strainer DN20(3/4") 56mesh
Article-No.: 08413.0600.0001
Price
POR
Description
Cryogenic strainer DN20 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
screen 1.4301 st.st. mesh size 0.25mm ( 55 mesh)
cap CC493K bronze
connection G 3/4 female thread
face to face 85mm , height 72mm
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
screen 1.4301 st.st. mesh size 0.25mm ( 55 mesh)
cap CC493K bronze
connection G 3/4 female thread
face to face 85mm , height 72mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 08413.0600.0001 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_08413 |
| Type (Series) | 08413 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 20 |
| Nominal pressure | PN 50 |
| Kvs-value | 6.6 MQH |
| body material | CC491K |
| CV-Value | 7,6 gal/min |
| Connection dimension inlet | 3/4'' |
| Connection dimension outlet | 3/4'' |
| Connection inlet | female thread BSPP |
| Connection outlet | female thread BSPP |
| Canada approval | CRN 0E14408.5C |
