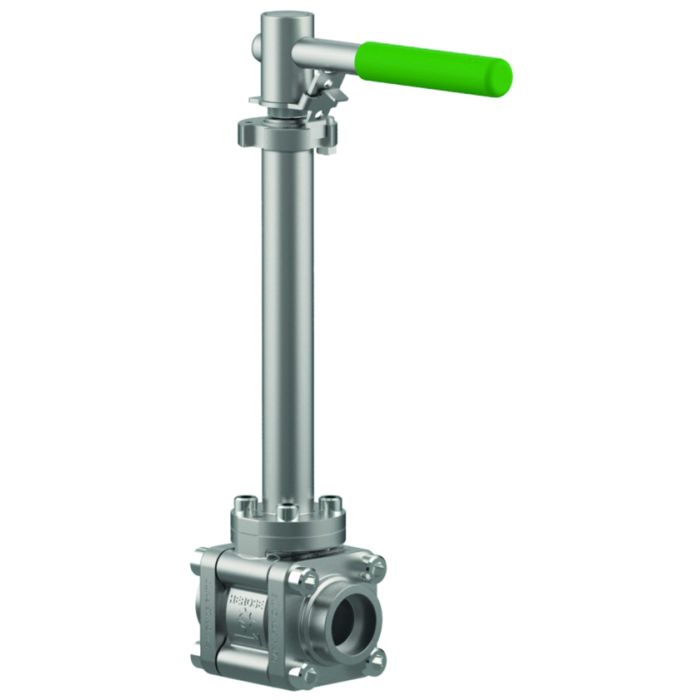

Ball Valve DN10 13.7x1.7 PN100
Click on the product image for a larger view.
Ball Valve DN10 13.7x1.7 PN100
Article-No.: 15C01.A001.000204
Price
POR
Description
3 piece ball valve DN10 PN100
cleaned and degreased for oxygen service
with bonnet extension H=296mm
working temperature: -196°C till +65°C
full bore
body: ASTM A351 CF3M (1.4409)
ball: ASTM A479 Grade 316 (1.4401)
ball sealing: PCTFE
body gasket: PCTFE
with pressure relief hole
flow direction: unidirectional
inlet/outlet connection: Butt weld CF3M (1.4409)
to ASTM A312 Sch10 OD 13.7mm x 1.7mmm
operation: with hand lever
Top flange to EN ISO 5211
face to face: 65.0mm
cleaned and degreased for oxygen service
with bonnet extension H=296mm
working temperature: -196°C till +65°C
full bore
body: ASTM A351 CF3M (1.4409)
ball: ASTM A479 Grade 316 (1.4401)
ball sealing: PCTFE
body gasket: PCTFE
with pressure relief hole
flow direction: unidirectional
inlet/outlet connection: Butt weld CF3M (1.4409)
to ASTM A312 Sch10 OD 13.7mm x 1.7mmm
operation: with hand lever
Top flange to EN ISO 5211
face to face: 65.0mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 15C01.A001.000204 |
|---|---|
| Solution | LNG, Air Gases, Industry |
| Solution Area | Transport, Storage, Refueling, Processes, Compressed Air |
| HEROSE Type Reference | CR_15C01 |
| Type (Series) | 15C01 |
| product approval | without |
| max. working pressure | PN100 |
| kv-value | 5.7 MQH |
| ball material | 1.4401 |
| flow direction | unidirectional |
| installation height | 296.0 MMT |
| Type of actuator | manual operation |
| Connection dimension inlet | 13,7x1,7 |
| Connection dimension outlet | 13,7x1,7 |
| Connection inlet | welding end |
| Connection outlet | welding end |
Related Type
Datasheet ID: CR_15C01
