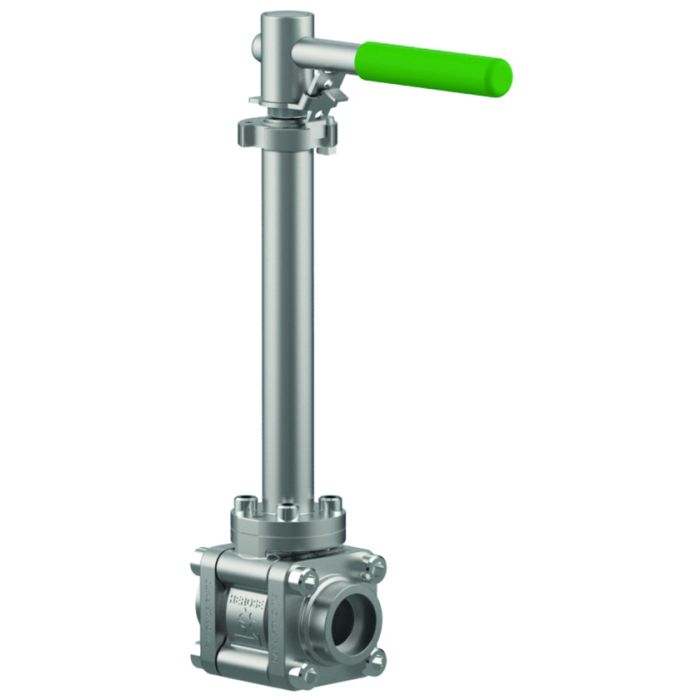

Ball Valve DN10 13.7x2.3 PN100

Article-No.: 15C01.A001.000205
Description
3 piece ball valve DN10 PN100
cleaned and degreased for oxygen service
with bonnet extension H=296mm
working temperature: -196°C till +65°C
full bore
body: ASTM A351 CF3M (1.4409)
ball: ASTM A479 Grade 316 (1.4401)
ball sealing: PCTFE
body gasket: PCTFE
with pressure relief hole
flow direction: unidirectional
inlet/outlet connection: Butt weld CF3M (1.4409)
to ASTM A312 Sch40 OD 13.7mm x 2.3mmm
operation: with hand lever
Top flange to EN ISO 5211
face to face: 65.0mm
More Information
SKU 15C01.A001.000205
Solution LNG, Air Gases, Industry
Solution Area Transport, Storage, Refueling, Processes, Compressed Air
HEROSE Type Reference CR_15C01
Type (Series) 15C01
product approval without
max. working pressure PN100
kv-value 5.7 MQH
ball material 1.4401
flow direction unidirectional
installation height 296.0 MMT
Type of actuator manual operation
Connection dimension inlet 13,7x2,3
Connection dimension outlet 13,7x2,3
Connection inlet welding end
Connection outlet welding end
