ball valve DN25 33.4x3.38 PN70

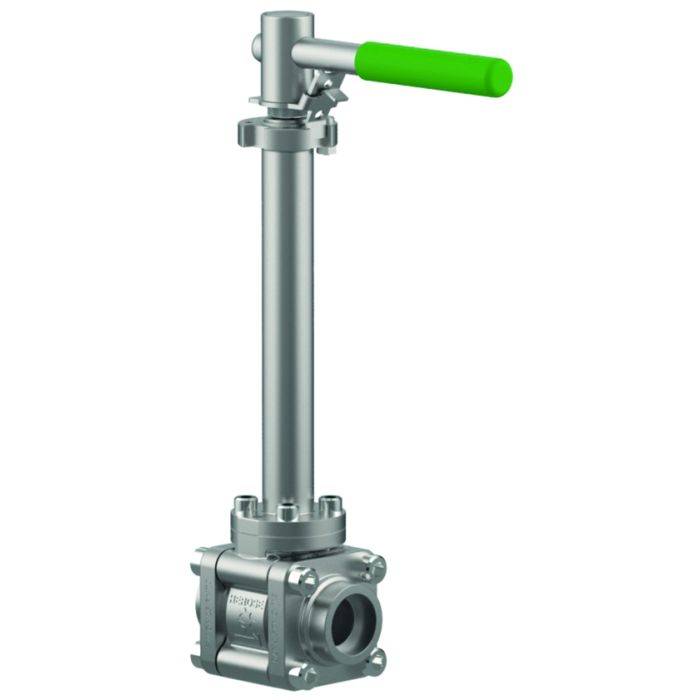

Click on the product image for a larger view.
ball valve DN25 33.4x3.38 PN70
Article-No.: 15C01.A001.000223
Price
POR
Description
3 piece ball valve DN25 PN70
cleaned and degreased for oxygen service
with bonnet extension 310.0mm
working temperature: -196°C till +65°C
full bore
body: ASTM A351 CF3M (1.4409)
ball: ASTM A479 Grade 316
ball sealing: PCTFE
body gasket: PCTFE
with pressure relief hole
flow direction: unidirectional
inlet/outlet connection: Butt Weld CF3M (1.4409) BW 33.4mm x 3.38mm
with hand lever
Top flange to EN ISO 5211
face to face: 100.0mm
cleaned and degreased for oxygen service
with bonnet extension 310.0mm
working temperature: -196°C till +65°C
full bore
body: ASTM A351 CF3M (1.4409)
ball: ASTM A479 Grade 316
ball sealing: PCTFE
body gasket: PCTFE
with pressure relief hole
flow direction: unidirectional
inlet/outlet connection: Butt Weld CF3M (1.4409) BW 33.4mm x 3.38mm
with hand lever
Top flange to EN ISO 5211
face to face: 100.0mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 15C01.A001.000223 |
|---|---|
| Solution | LNG, Air Gases, Industry |
| Solution Area | Transport, Storage, Refueling, Processes, Compressed Air |
| HEROSE Type Reference | CR_15C01 |
| Type (Series) | 15C01 |
| product approval | without |
| max. working pressure | PN70 |
| kv-value | 32.1 MQH |
| ball material | 1.4401 |
| flow direction | unidirectional |
| installation height | 310.0 MMT |
| Type of actuator | manual operation |
| Connection dimension inlet | 33,4x3,38 |
| Connection dimension outlet | 33,4x3,38 |
| Connection inlet | welding end |
| Connection outlet | welding end |
Related Type
Datasheet ID: CR_15C01
