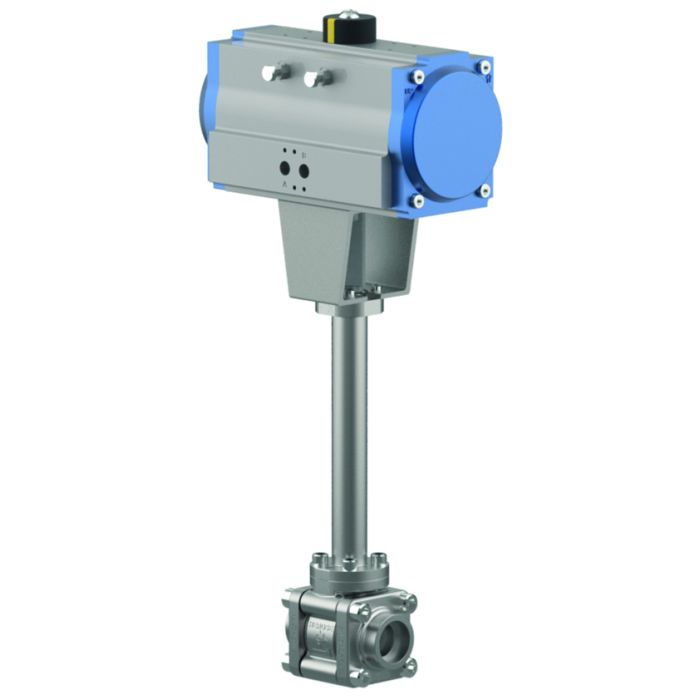

ball valve DN10 3/8"NPT PN100
Click on the product image for a larger view.
ball valve DN10 3/8"NPT PN100
Article-No.: 15C01.A002.000203
Price
POR
Description
valve:
3-piece ball valve DN10 PN100
cleaned and degreased for oxygen service acc. to CGA G-4.1-2009
leakage category "A" acc. to EN 12266-1
with insulating extension
all. medium temperature: -196°C till +65°C
full bore
body: ASTM A351 CF3M (1.4409)
ball: ASTM A479 Grade 316
body gasket: PCTFE
ball gasket: PCTFE
with pressure relief hole
ball valve can be used on one side in the direction of flow
flow direction: unidirectional
inlet/outlet connection: female thread CF3M (1.4409) 3/8"NPT
face to face: 65,0mm
actuator:
max. signal pressure: 8 bar
min. signal pressure: 6 bar
medium: air, nitrogen
all. working temperature actuator: -20 °C till +80 °C
actuator to valve mounting: ISO 5211
actuator to solenoid mounting: Namur, VDI/VDE 3845
3-piece ball valve DN10 PN100
cleaned and degreased for oxygen service acc. to CGA G-4.1-2009
leakage category "A" acc. to EN 12266-1
with insulating extension
all. medium temperature: -196°C till +65°C
full bore
body: ASTM A351 CF3M (1.4409)
ball: ASTM A479 Grade 316
body gasket: PCTFE
ball gasket: PCTFE
with pressure relief hole
ball valve can be used on one side in the direction of flow
flow direction: unidirectional
inlet/outlet connection: female thread CF3M (1.4409) 3/8"NPT
face to face: 65,0mm
actuator:
max. signal pressure: 8 bar
min. signal pressure: 6 bar
medium: air, nitrogen
all. working temperature actuator: -20 °C till +80 °C
actuator to valve mounting: ISO 5211
actuator to solenoid mounting: Namur, VDI/VDE 3845
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 15C01.A002.000203 |
|---|---|
| Solution | LNG, Air Gases, Industry |
| Solution Area | Transport, Storage, Refueling, Processes, Compressed Air |
| HEROSE Type Reference | CR_15C01_6 |
| Type (Series) | 15C01 |
| product approval | without |
| max. working pressure | PN100 |
| kv-value | 5.7 MQH |
| ball material | 1.4401 |
| flow direction | unidirectional |
| installation height | 441.0 MMT |
| Type of actuator | actuator |
| Connection dimension inlet | 3/8"NPT |
| Connection dimension outlet | 3/8"NPT |
| Connection inlet | female thread |
| Connection outlet | female thread |
Related Type
Datasheet ID: CR_15C01_6
