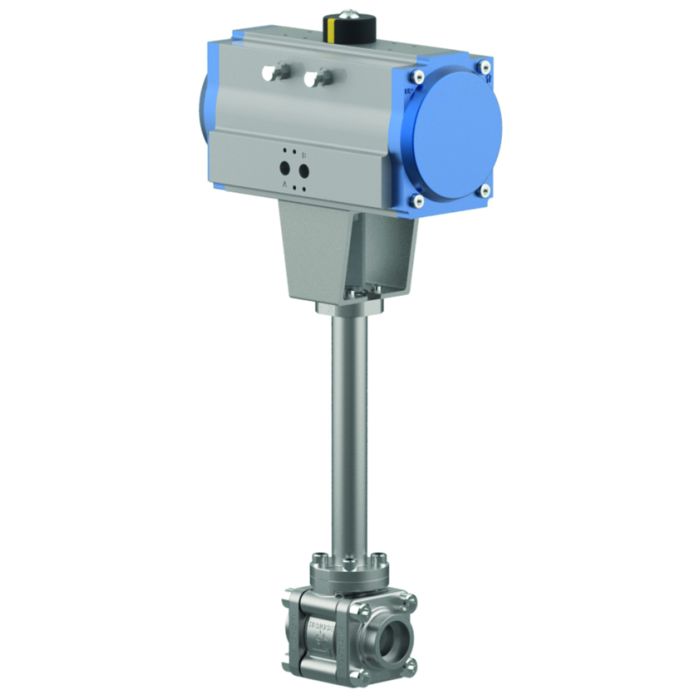

ball valve DN40 48,3x2,77 PN70

Article-No.: 15C01.A002.000234
Description
valve:
3-piece ball valve DN40 PN70
cleaned and degreased for oxygen service to CGA G-4.1-2009
leakage category "A" acc. to EN 12266-1
with insulating extension
all. medium temperature: -196°C till +65°C
full bore
body: ASTM A351 CF3M (1.4409)
ball: ASTM A479 Grade 316
body gasket: PCTFE
ball gasket: PCTFE
with pressure relief hole
ball valve can be used on one side in the direction of flow
flow direction: unidirectional
inlet/outlet connection: welding end CF3M (1.4409) BW 48,3x2,77
face to face: 125,0mm

actuator:
max. signal pressure: 8 bar
min. signal pressure: 6 bar
medium: air, nitrogen
all. working temperature actuator: -20 °C till +80 °C
actuator to valve mounting: ISO 5211
actuator to solenoid mounting: Namur, VDI/VDE 3845

More Information
SKU 15C01.A002.000234
Solution LNG, Air Gases, Industry
Solution Area Transport, Storage, Refueling, Processes, Compressed Air
HEROSE Type Reference CR_15C01_6
Type (Series) 15C01
product approval without
max. working pressure PN70
kv-value 122.3 MQH
ball material 1.4401
flow direction unidirectional
installation height 594.0 MMT
Type of actuator actuator
Connection dimension inlet 48,3x2,77
Connection dimension outlet 48,3x2,77
Connection inlet welding end
Connection outlet welding end
