PLS NAMUR NC, 10m PVC, DN10-150 RTK
The product shown in the picture may differ from the product sold.
PLS NAMUR NC, 10m PVC, DN10-150 RTK
Article-No.: 41080.1235.AA20400
Price
POR
Description

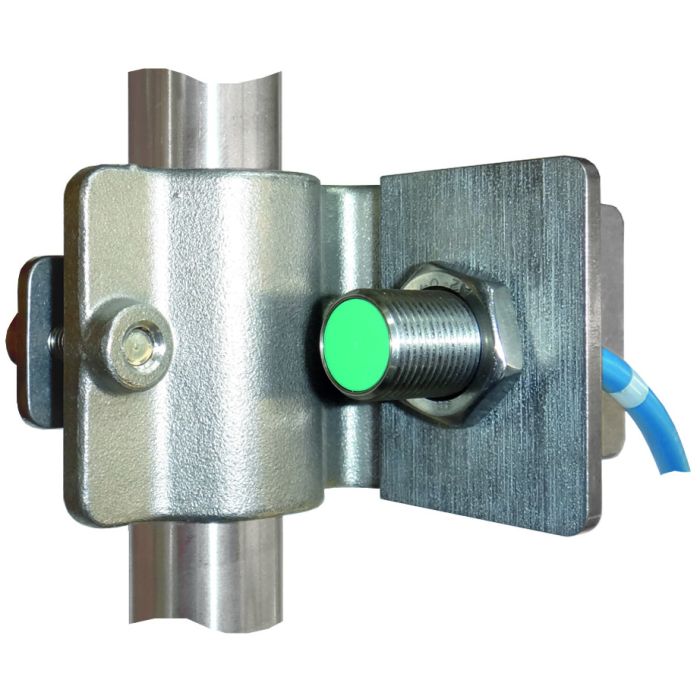

Proxy limit switch
Functions: inductive, Switching element function NAMUR NC,
output polarity NAMUR, rated operating distance 2mm
assured operating distance 0 - 1.62mm
installation embeddable
nominal voltage 8V
switch frequency 0 - 1000Hz
short-circuit and reverse polarity protection
Indication of the switching state all direction LED yellow,
with cable 10m x 0.34mm²
Protecting class IP67 acc.to EN60529, EEX ia IIC T6
inclusive fixing device
Old part number 41080.1235.0010
Functions: inductive, Switching element function NAMUR NC,
output polarity NAMUR, rated operating distance 2mm
assured operating distance 0 - 1.62mm
installation embeddable
nominal voltage 8V
switch frequency 0 - 1000Hz
short-circuit and reverse polarity protection
Indication of the switching state all direction LED yellow,
with cable 10m x 0.34mm²
Protecting class IP67 acc.to EN60529, EEX ia IIC T6
inclusive fixing device
Old part number 41080.1235.0010
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 41080.1235.AA20400 |
|---|---|
| HEROSE Type Reference | CR_41080 |
| Type (Series) | 41080 |
| product approval | ATEX 2014/34/EU |
Related Type
Datasheet ID: CR_41080
