PLS NAMUR NC, M12x1, DN10-50 ARI

Article-No.: 41080.1235.BA00000
Description

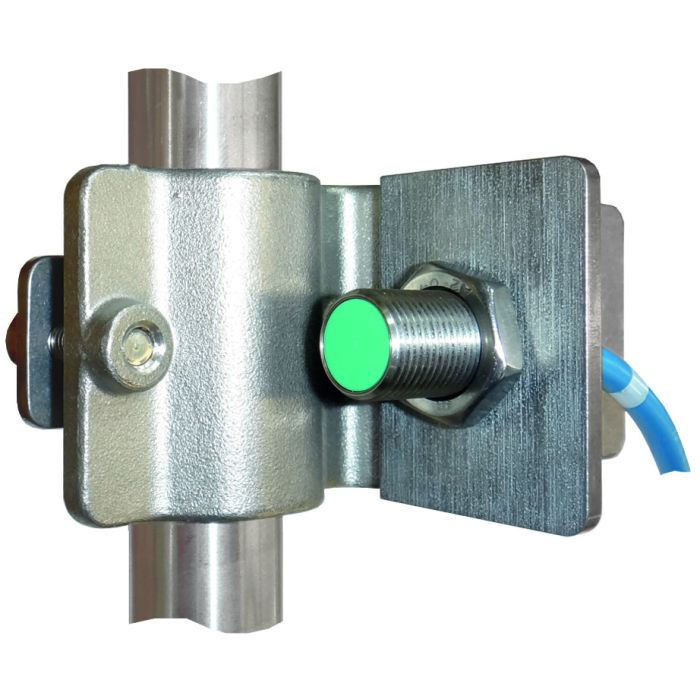

Proxy limit switch NCN4-12GM35-N0-V1
Functions: inductive, Switching element function NAMUR NC,
output polarity NAMUR, rated operating distance 4mm
assured operating distance 0 - 3,24mm
installation not embeddable
nominal voltage 8,2V
switch frequency 0 - 800Hz
short-circuit and reverse polarity protection
Indication of the switching state all direction LED yellow,
Connector M12 x 1 , 4-pin
Protecting class IP67 acc.to EN60529
ATEX Device Categorie 1G; 2G; 1D
inclusive fixing device for DN10 - DN50 with 27514 / 27515
More Information
SKU 41080.1235.BA00000
HEROSE Type Reference CR_41080
Type (Series) 41080
product approval ATEX 2014/34/EU
