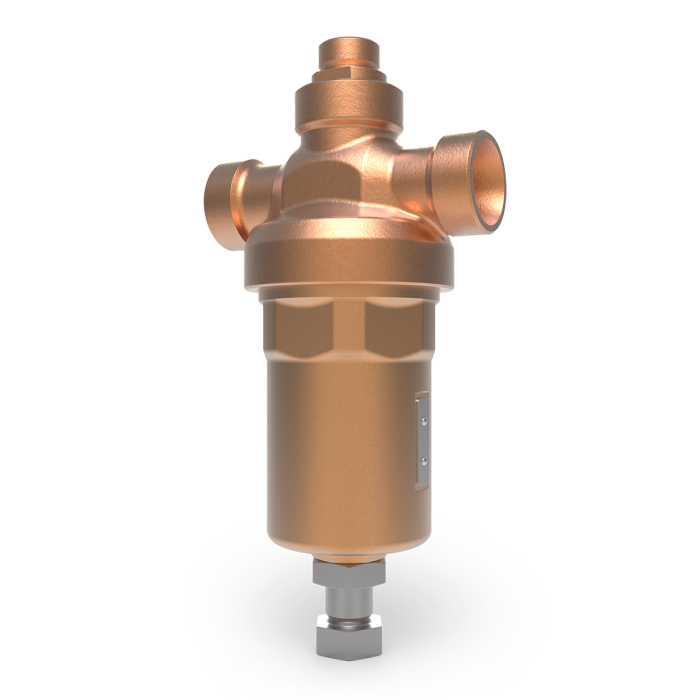

Combi-Regler DN20 M40x2 M26x1,5 MW=0,25
Click on the product image for a larger view.
Combi-Regler DN20 M40x2 M26x1,5 MW=0,25
Article-No.: 4185.MM04020.13001
Price
POR
Description
cryogenic combi-regulator with safety relief function
DN20 PN50
cleaned and degreased for oxygen service
all. working temperature -196°C till +65°C
working pressure range 16,0 till 38,0 bar
Kvs=1,5m³/h
Cv=1,7gal/min
body CW617N brass
spring cap CW617N brass
conus gasket PTFE
connection A and B: union type fitting M40x2 with screen CW453K/CW452K-
mesh size 0,25mm
connection C: union type fitting G M26x1,5
face to face dimension A to B: 125mm
flow axis A and B to C: 63mm
DN20 PN50
cleaned and degreased for oxygen service
all. working temperature -196°C till +65°C
working pressure range 16,0 till 38,0 bar
Kvs=1,5m³/h
Cv=1,7gal/min
body CW617N brass
spring cap CW617N brass
conus gasket PTFE
connection A and B: union type fitting M40x2 with screen CW453K/CW452K-
mesh size 0,25mm
connection C: union type fitting G M26x1,5
face to face dimension A to B: 125mm
flow axis A and B to C: 63mm
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 4185.MM04020.13001 |
|---|---|
| Solution | LNG |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_4185-1 |
| Type (Series) | 4185 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 65.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 20 |
| Nominal pressure | PN 50 |
| Kvs-value | 1.5 MQH |
| body material | CW617N |
| CV-Value | 1,7 gal/min |
| Connection dimension inlet | M40 X 2,0 |
| Connection dimension outlet | M40 X 2,0 |
| Connection inlet | KONUSANSCHLUSS |
| Connection outlet | KONUSANSCHLUSS |
| Pressure range BAR | 16,00 - 38,00 bar |
| Pressure range KPA | 1.600,00 - 3.800,00 kPa |
| Pressure range PSI | 232,00 - 551,00 PSI |
