Diverter Plug Valve DN32(1 1/4")

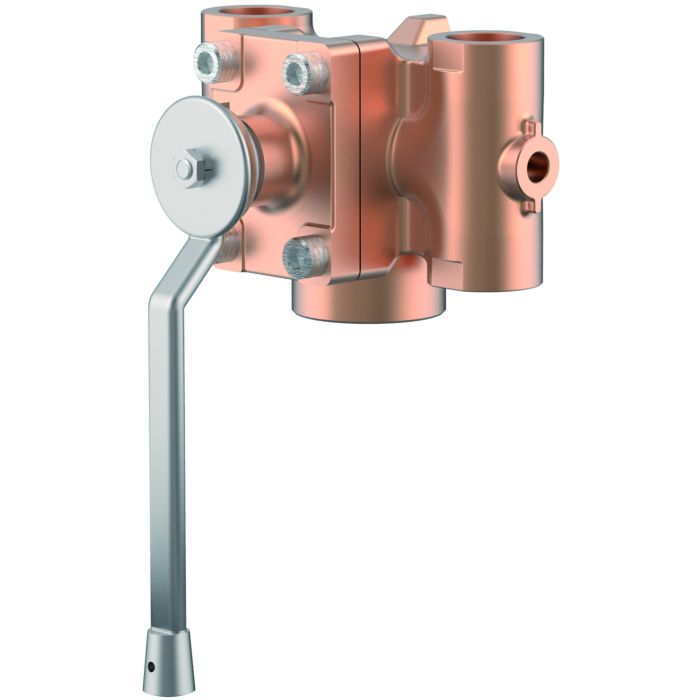

The product shown in the picture may differ from the product sold.
Diverter Plug Valve DN32(1 1/4")
Article-No.: 7111.0337026ED3012
Price
POR
Description
Diverter Plug Valve DN32 PN50
cleaned and degreased for oxygen service
working temperature: -196°C up to +120°C
body: CC491K
gland packing: graphite/PTFE
inlet: weld fitting (1.4301 st. st.) BW 33,7x2,6 / 1"S10
outlet top: 3/4"BSPP female thread (2x)
outlet bottom: 3/4"BSPP female thread with with screw plug (2x)
test connection: without
mounting hole: 2x M8
face to face: 180mm
cleaned and degreased for oxygen service
working temperature: -196°C up to +120°C
body: CC491K
gland packing: graphite/PTFE
inlet: weld fitting (1.4301 st. st.) BW 33,7x2,6 / 1"S10
outlet top: 3/4"BSPP female thread (2x)
outlet bottom: 3/4"BSPP female thread with with screw plug (2x)
test connection: without
mounting hole: 2x M8
face to face: 180mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 7111.0337026ED3012 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_7111 |
| Type (Series) | 7111 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 32 |
| Nominal pressure | PN 50 |
| Kvs-value | 16.0 MQH |
| body material | CC491K |
| CV-Value | 18,6 gal/min |
| China approval | TS2700G39-2029 |
| Connection dimension inlet | 33,7 x 2,6 / 1'' S10 |
| Connection dimension outlet | 3/4'' |
| Connection inlet | SCHWEIßKUGELBUCHSE |
| Connection outlet | female thread BSPP |
| Canada approval | CRN 0C20592.5C |
