Type 06420

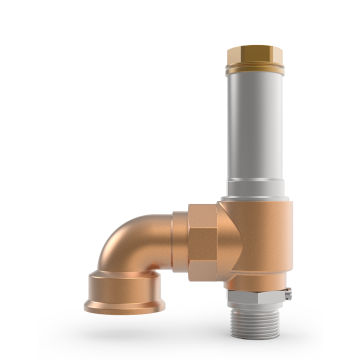

Click on the product image for a larger view.
Field of application
Applications:
Provided as safety device for protection against excessive pressure in stationary and moveable gas
cylinders and pressure vessels. Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +185°C / +365°F (458K), with PCTFE-seal
up to +150°C / 302°F (423K), suitable for horizontal installation
Certificates
EAC - Eurasian Conformity (010/2011)
EAC - Eurasian Conformity (032/2013)
ABS (Class Rules)
Transportable Pressure Equipment Directive (2010/35/EU)
ASME Code (ASME Code Section VIII)
Canadian Registration Number (CRN)
Gost Ukraine (Gost Ukraine)
License of Special Equipment (China) (TS)
ClassNK (Class Rules)
Gas Cylinder Rules 2016 (India) (GCR 2016)
Korean Gas Safety (KGS)
BV (Class Rules)
RINA (Class Rules)
Pressure Equipment Directive (2014/68/EU)
Operating Instructions
Live Stock: Out-Of Stock pcs (ON STOCK)
Solution | LNG, Air Gases |
---|---|
Solution Area | Transport, Storage, Refueling, Processes |
SKU | CR_06420 |

Materials |
DIN EN |
ASME/ASTM |
|
---|---|---|---|
1 |
Outlet body |
CC491K |
SB62 UNS C83600 |
2 |
Inlet body |
1.4301 |
SA 479 Grade 304 |
3 |
Valve seal |
PCTFE 1.4571 1.4541 |
A 313 Grade 316Ti (d07) A 276 Grade 321 (d010.5) |
4 |
Disc |
CC493K |
B 505 UNS C93200 |
5 |
Guide plate |
CC493K |
B 505 UNS C93200 |
6 |
Stem |
CW453K |
B 103 UNS C52100 |
7 |
Spring |
1.4571 |
A 313 Grade 316Ti |
8 |
Bonnet |
1.4301 |
A 276 Grade 304 |
9 |
Spring clamp |
CW614N |
B 455 UNS C38500 |
10 |
Thread ring |
CW614N |
B 455 UNS C38500 |
11 |
Cap |
CW614N |
B 455 UNS C38500 |
Type 06420 |
Technical data |
|||||||||
---|---|---|---|---|---|---|---|---|---|---|
Nominal size |
GW |
1/2 |
3/4 |
1/2 |
3/4 |
3/4 |
1 |
1 |
1-1/4 |
1-1/4 |
Orifice |
d0 |
7.0 |
7.0 |
10.5 |
10.5 |
14.0 |
14.0 |
18.0 |
18.0 |
23.0 |
Dimension code |
.X. |
0704 |
0706 |
1004 |
1006 |
1406 |
1410 |
1810 |
1812 |
2312 |
Set pressure range |
bar |
0.4-50.0 |
0.4-50.0 |
0.4-50.0 |
0.4-50.0 |
0.4-40.0 |
0.4-40.0 |
0.4-40.0 |
0.4-40.0 |
0.4-10.0 |
Outlet |
GA |
1 |
1 |
1 |
1 |
1-1/4 |
1-1/4 |
1-1/2 |
1-1/2 |
1-1/2 |
Height |
H |
140 |
140 |
140 |
140 |
159 |
159 |
186 |
187 |
187 |
Length |
A1 |
14 |
16 |
14 |
16 |
16 |
18 |
18 |
20 |
20 |
Length |
L1 |
36 |
36 |
36 |
36 |
50 |
50 |
48 |
48 |
48 |
Length |
L2 |
36.5 |
36.5 |
36.5 |
34.5 |
44 |
44 |
50.5 |
51.5 |
52 |
Wrench size across flats |
S1 |
30 |
30 |
30 |
30 |
41 |
41 |
50 |
50 |
50 |
Wrench size across flats |
S2 |
41 |
41 |
41 |
41 |
50 |
50 |
58 |
58 |
58 |
Weight |
ca. kg |
0.78 |
0.80 |
0.76 |
0.79 |
1.25 |
1.31 |
1.87 |
1.99 |
1.90 |
Coeff. of disch. from 3.0 bar |
αw |
0.78 |
0.78 |
0.69 |
0.69 |
0.66 |
0.66 |
0.66 |
0.66 |
0.54 |
Product Variants
