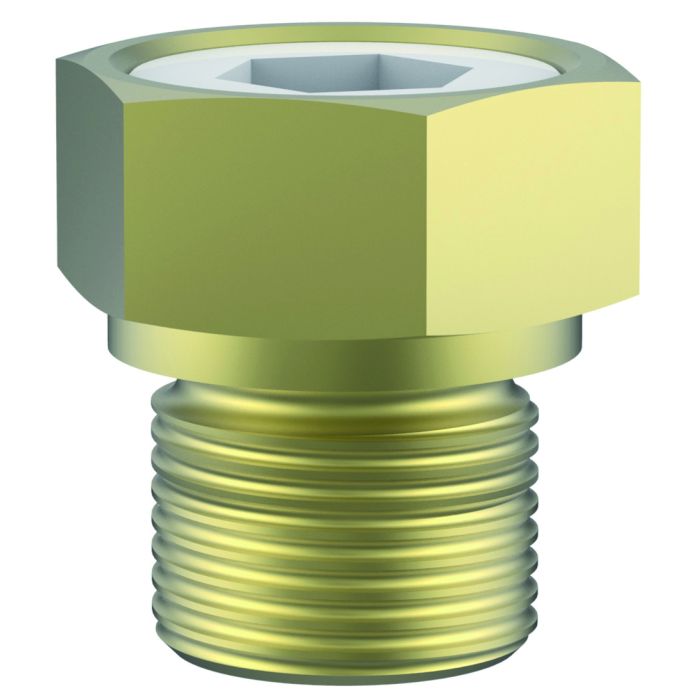

Type 06900 - Bursting disc brass
The product shown in the picture may differ from the product sold.
Type 06900 - Bursting disc brass
Datasheet ID: CR_06900
Price
POR
Data sheets
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling |
| SKU | CR_06900 |
Materials
Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
CW614N |
B 283 UNS C38500 |
2 |
Burst disc |
1.4401 |
AISI 316 |
3 |
Ring |
CW614N |
B 283 UNS C38500 |
Versions
Type 06900 |
Technical data |
|
|---|---|---|
Nominal size |
GW |
1/2 |
Height G-Thread |
H |
33,0 |
Height NPT-Thread |
H |
37,5 |
Length G-Thread |
L |
15,5 |
Length NPT-Thread |
L |
20,0 |
Orifice |
d0 |
13,0 |
Wrench size across flats |
S |
30 |
Weight |
ca. kg |
0,1 |
Kvs-Value |
m³/h |
11,0 |
Cv-Value |
gal/min |
13,1 |
Product Variants
Filter our product by specific attributes| Name | Link to product |
|---|
- ...
- ...
/
Related Type
Article-No.: 06900.0400.0008.10
Price
POR
POR
BERSTSCHEIBE G1/2 8,10 bar / 117,5 psi
Article-No.: 06900.0400.0008.10
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06900
Price
POR
POR
Article-No.: 06900.0400.0027.00
Price
POR
POR
BERSTSCHEIBE G1/2 27,00 bar / 391,5 psi
Article-No.: 06900.0400.0027.00
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06900
Price
POR
POR
Article-No.: 06900.0400.0046.00
Price
POR
POR
BERSTSCHEIBE G1/2 46,00 bar / 667,0 psi
Article-No.: 06900.0400.0046.00
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06900
Price
POR
POR
Article-No.: 06900.0400.5024.00
Price
POR
POR
BERSTSCHEIBE 1/2"NPT 24,00bar/348,0psi
Article-No.: 06900.0400.5024.00
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06900
Price
POR
POR
Article-No.: 06900.0400.5027.00
Price
POR
POR
BERSTSCHEIBE 1/2"NPT 27,00bar/391,5psi
Article-No.: 06900.0400.5027.00
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06900
Price
POR
POR
Article-No.: 06900.0400.5032.00
Price
POR
POR
BERSTSCHEIBE 1/2"NPT 32,00bar/464,0psi
Article-No.: 06900.0400.5032.00
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06900
Price
POR
POR
Article-No.: 06900.0400.5046.00
Price
POR
POR
BERSTSCHEIBE 1/2"NPT 46,00bar/667,0psi
Article-No.: 06900.0400.5046.00
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06900
Price
POR
POR
