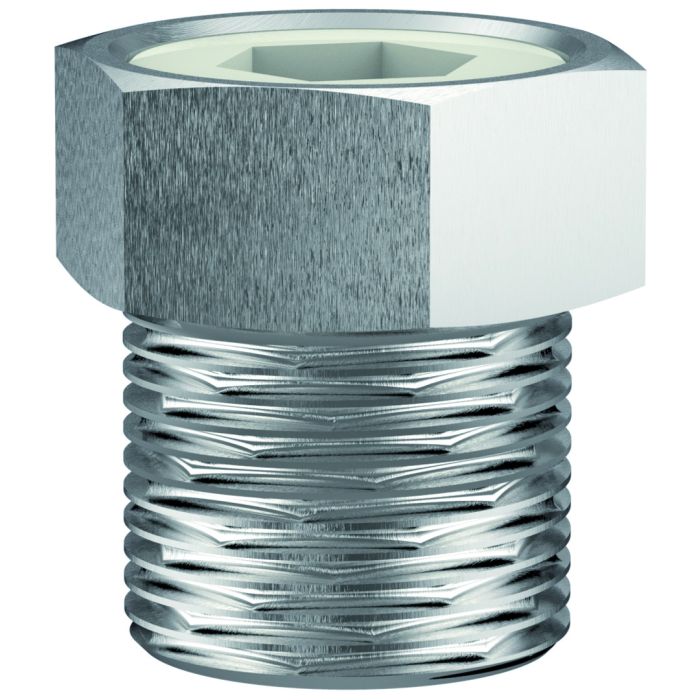

Type 06901 - Bursting disc stainless steel
Click on the product image for a larger view.
Type 06901 - Bursting disc stainless steel
Datasheet ID: CR_06901
Price
POR
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling |
| SKU | CR_06901 |
Materials
Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4404 |
A 276 Grade 316L |
2 |
Burst disc |
2.4068 |
NI 201 |
3 |
Ring |
1.4404 |
A 276 Grade 316L |
Versions
Type 06901 |
Technical data |
|
|---|---|---|
Nominal size |
GW |
1/2 |
Height G-Thread |
H |
34,0 |
Height NPT-Thread |
H |
38,5 |
Length G-Thread |
L |
15,5 |
Length NPT-Thread |
L |
20,0 |
Orifice |
d0 |
13,0 |
Wrench size a/f up to 8,0 bar |
S |
46 |
Wrench size a/f from 8,01 bar |
S |
30 |
Weight |
ca. kg |
0,1 |
Kvs-Value |
m³/h |
11,0 |
Cv-Value |
gal/min |
13,1 |
