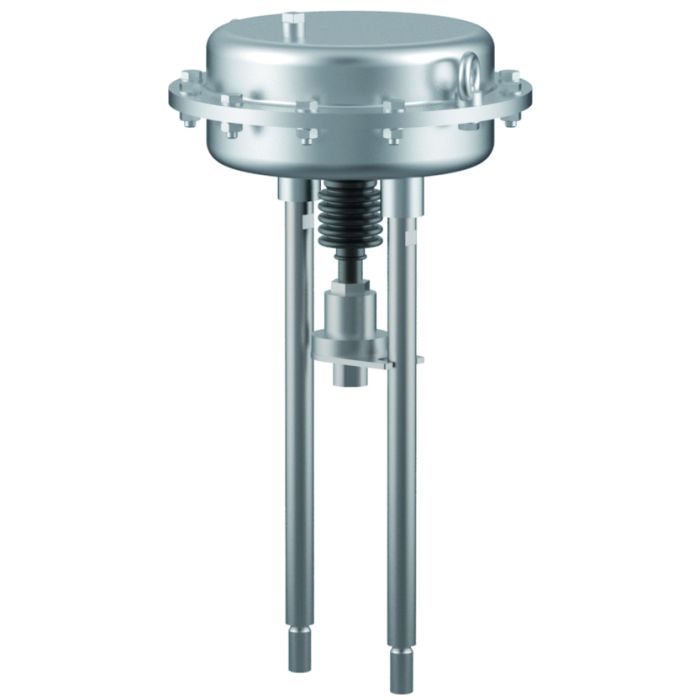

Type 27514 - Pneumatic Actuator - Globe Valve (on/off)

Datasheet ID: CR_27514_1
More Information
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_27514_1

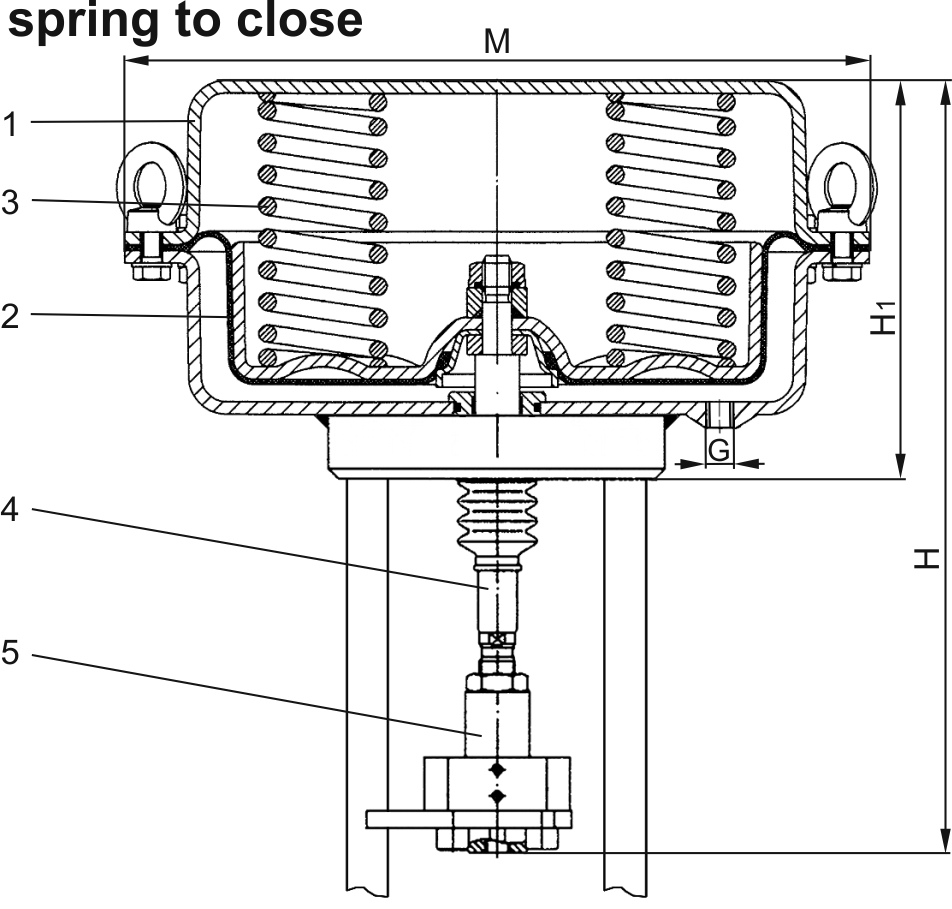

Materials

Materials

DIN EN

ASTM

1

Body

1.0335

A 622 Grade 1008

2

Diaphragm

NBR + tissue

3

Springs

1.4310

A 313 Grade 301

4

Actuator stem

1.4571

A 276 Grade 316Ti

5

Coupling

1.4571

A 276 Grade 316Ti
Versions

Type 27514

Technical Data

Part No. Actuator

27514

.DP30

.2O22

.DP32

.2O08

.DP32

.2O20

.DP33

.3O20

.DP34

.5O15

.DP34

.5O20

.DP34

.T0PO

.DP34

.TRPO

.DP34

.TRP1

Diameter Actuator

M

168

250

250

300

405

405

405

405

405

Height

H

ca. 244

ca. 240

ca. 240

ca. 300

ca. 375

ca. 375

ca. 635

ca. 884

ca. 884

Height

H1

122

124

124

166

228

228

450

672

672

Thread

G

G 1/4"

G 1/4''

G 1/4''

G 1/4''

G 3/8''

G 3/8''

G 3/8''

G 1/2"

G 1/2"

Diaphragm area

cm²

80

250

250

400

800

800

1600 (2x800)

2400 (3x800)

2400 (3x800)

Spring range

bar

2.2 - 4.5

0.8 - 2.4

2.0 - 3.8

2.0 - 4.0

1.5 - 3.0

2.0 - 4.0

2.0 - 4.0

2.0 - 4.0

2.0 - 4.0

Minimum air pressure

bar

4.8

2.7

3.6

4.5

3.3

4.5

4.5

4.5

4.5

Regulating lift

mm

20

20

20

30

50

50

50

65

65

Weight

ca. kg

5.0

9.0

9.0

15.0

45.0

45.0

116.0

150.0

152.0
