Type 05011, Type 05012

Datasheet ID: IN_05011_05012
Field of application

Applications:

Suitable for non-toxic, non-inflammable fluids, gases and vapours.

The laws, regulations and standards are to observe for the range of application.

Working temperatures and pressures:

up to max. 16.0 bar: -10°C / +14°F (263K) up to +80°C / +176°F (353K)

up to max. 10.0 bar: -10°C / +14°F (263K) up to +120°C / +248°F (393K)

up to max. 6.0 bar: -10°C / +14°F (263K) up to +160°C / +320°F (433K)

More Information
Solution Air Gases
Solution Area Transport, Storage, Processes
SKU IN_05011_05012

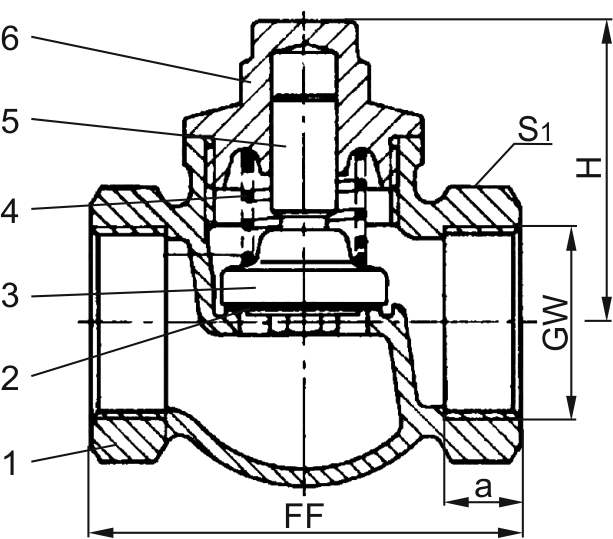

Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Seal Type 05011

FPM

2

Seal Type 05012

PTFE

3

Disc

CW614N

B 283 UNS C38500

4

Spring

1.4310

A 313 Grade 301

5

Guide piece

CW614N

B 283 UNS C38500

6

Cap

CW614N

B 283 UNS C38500
Versions

Type 05011 & 05012

Technical data

Nominal size

GW

3/8

1/2

3/4

1

1-1/4

1-1/2

2

Dimension code

.X.

0300

0400

0600

1000

1200

1400

2000

Face-to-face dimension

FF

50

60

70

80

95

105

130

Height

H

40

40

50

55

55

65

75

Socket depth

a

10

13

14

17

19

19

23

Wrench size across flats

S1

22

27

32

41

50

58

70

Weight

ca. kg

0.2

0.3

0.4

0.6

0.9

1.3

2.0
