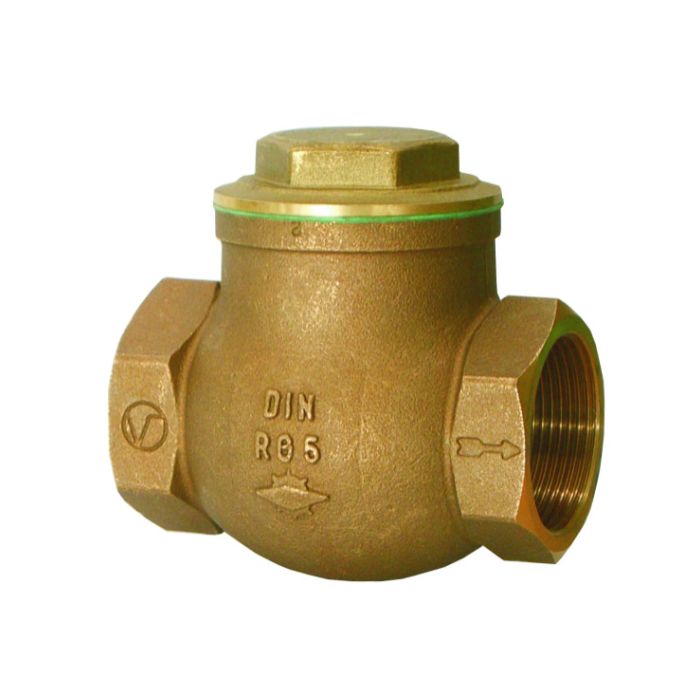

Type 05040

Datasheet ID: IN_05040
Field of application

Applications:

Suitable for non-toxic, non-inflammable fluids, gases and vapours.

The laws, regulations and standards are to observe for the range of application.

Working temperatures and pressures:

up to max. 16.0 bar: -10°C / +14°F (263K) up to +80°C / +176°F (353K)

up to max. 10.0 bar: -10°C / +14°F (263K) up to +120°C / +248°F (393K)

up to max. 6.0 bar: -10°C / +14°F (263K) up to +160°C / +320°F (433K)

More Information
Solution Air Gases
Solution Area Transport, Storage, Processes
SKU IN_05040

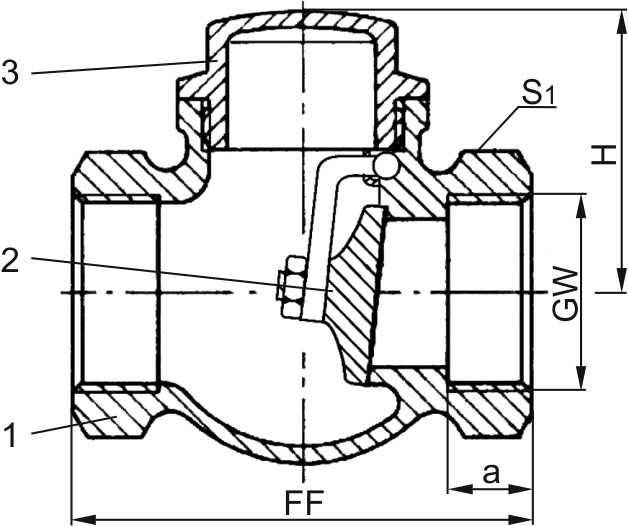

Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Swing

CW614N

B 283 UNS C38500

3

Cap

CW614N

B 283 UNS C38500
Versions

Type 05040

Technical data

Nominal size

GW

1/2

3/4

1

1-1/4

1-1/2

2

2-1/2

Dimension code

.X.

0400

0600

1000

1200

1400

2000

2400

Face-to-face dimension

FF

60

70

80

95

105

130

160

Height

H

40

49

56

60

70

80

105

Flow diameter

d0

13

17

22

28

31

46

60

Socket depth

a

12

13

15

16

18

20

20

Wrench size across flats

S1

27

34

41

51

55

70

90

Weight

ca. kg

0.28

0.45

0.70

0.96

1.40

2.10

3.70

Kvs-Value

m³/h

5.5

10.2

20.2

34.7

44.9

104.0

175.0
