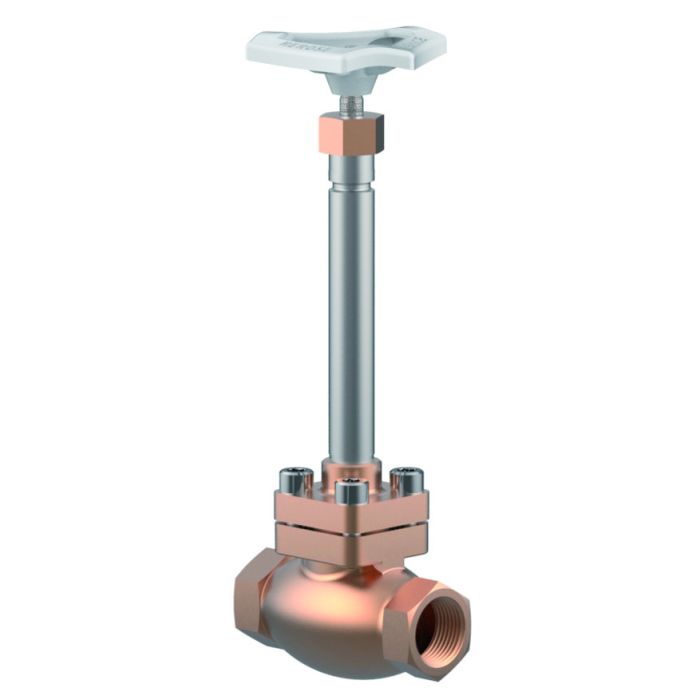

Globe Valve DN15(1/2") H370

Article-No.: 01315.0400.0026
Description
Cryogenic globe valve DN15 PN 50
cleaned and degreased for oxygen service
with bonnet extension H=370mm
working temperature -196°C up to +120°C
body CC491K
bonnet CC493K
gland packing Graphit/PTFE
Connection female thread
1/2" NPT
face to face 85mm
Kvs=4,3m³/h Cv=5gal/min

More Information
SKU 01315.0400.0026
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
HEROSE Type Reference CR_01315
Type (Series) 01315
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 120.0 °C
cleaned for oxygen service ISO 23208
nominal size DN 15
Nominal pressure PN 50
max. lift 12.0
Kvs-value 4.3 MQH
body material CC491K
CV-Value 5,0 gal/min
China approval TS2700G39-2029
installation height 370.0 MMT
Connection dimension inlet 1/2''
Connection dimension outlet 1/2''
Connection inlet female thread NPT
Connection outlet female thread NPT
Canada approval CRN 0C22964.5C
Handwheelmaterial and color aluminium, white
Taper function lockable function
Bonnet extension with bonnet extension
Valve operation manual operation
Material seat seal PTFE/carbon
