Type 01315 - Globe Valve

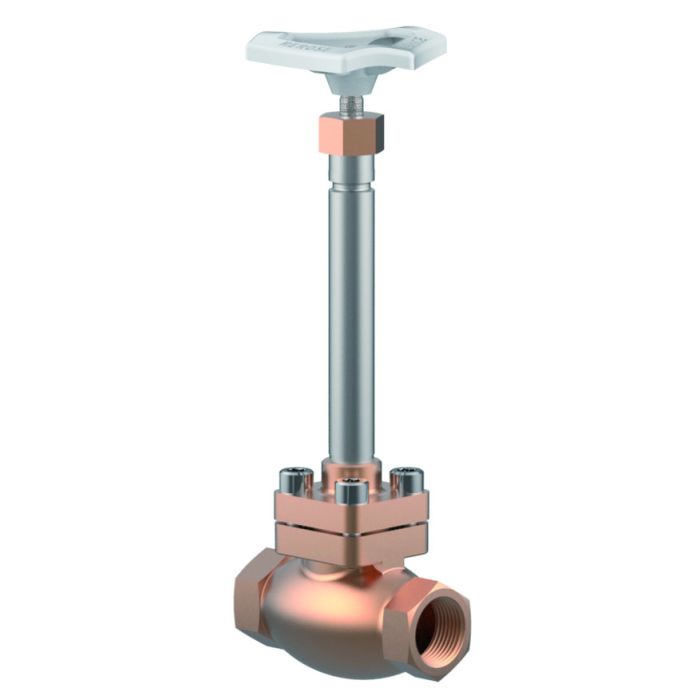

The product shown in the picture may differ from the product sold.
Type 01315 - Globe Valve
Datasheet ID: CR_01315
Price
POR
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Certificates
EAC - Eurasian Conformity (010/2011)
Transportable Pressure Equipment Directive (2010/35/EU)
type-examination for LNG (DIN EN 12567)
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
EAC - Eurasian Conformity (032/2013)
Gost Ukraine (Gost Ukraine)
License of Special Equipment (China) (TS)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
Pressure Equipment Directive (2014/68/EU)
Operating Instructions
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_01315 |

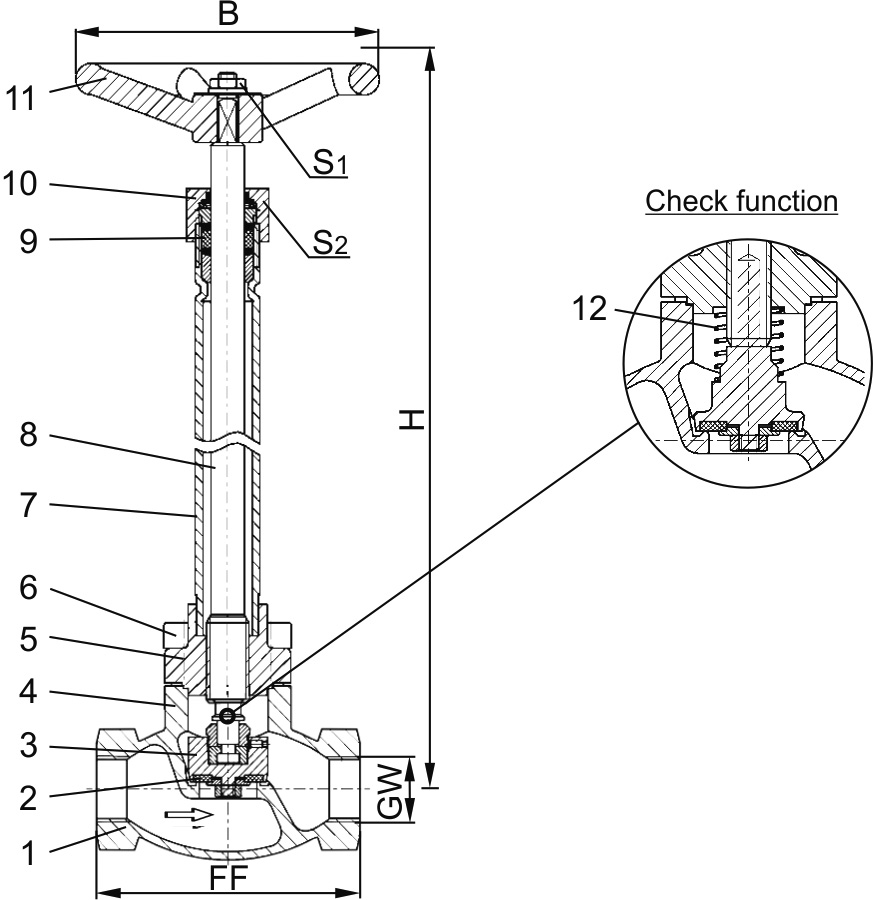

Materials
Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
CC491K |
B 62 UNS C83600 |
2 |
Valve seal |
PTFE / Carbon filled (25%) |
|
3 |
Disc |
CW614N |
B 283 UNS C38500 |
4 |
Bonnet gasket |
PTFE |
|
5 |
Headpiece |
CC493K |
B 505 UNS C93200 |
6 |
Bolts |
1.4301/A2 |
A 194 B8 |
7 |
Elongation tube |
1.4541 |
A 213 TP 321 |
8 |
Stem |
1.4301 |
A 276 Grade 304 |
9 |
Gland packing |
Graphite / PTFE |
|
10 |
Gland nut |
CW614N |
B 283 UNS C38500 |
11 |
Handwheel |
Aluminium alloy |
|
12 |
Spring |
CW452K |
B 159 UNS C51900 |
Versions
Type 01315 - Standard design |
Technical data |
||||||||
|---|---|---|---|---|---|---|---|---|---|
Nominal size |
DN |
10 |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
Thread size |
GW |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
Dimension code |
.X. |
0200 |
0300 |
0400 |
0600 |
1000 |
1200 |
1400 |
2000 |
Face-to-face dimension |
FF |
60 |
60 |
85 |
85 |
115 |
115 |
140 |
160 |
Height |
H |
270mm or 370mm |
|||||||
Handwheel-Ø |
B |
100 |
100 |
100 |
100 |
100 |
125 |
125 |
125 |
Wrench size across flats |
S1 |
7 |
7 |
7 |
7 |
7 |
10 |
10 |
10 |
Wrench size across flats |
S2 |
30 |
30 |
30 |
30 |
30 |
36 |
36 |
36 |
Weight |
ca. kg |
1.4 |
1.4 |
1.7 |
2.1 |
2.4 |
3.3 |
4.7 |
7.2 |
Kvs-Value |
m³/h |
1.6 |
2.2 |
4.3 |
6.7 |
11.5 |
20.6 |
22.6 |
37.1 |
Cv-Value |
gal/min |
1.9 |
2.6 |
5.0 |
7.8 |
13.4 |
23.9 |
26.3 |
43.2 |
Product Variants
