Check Valve DN10(3/8") H40

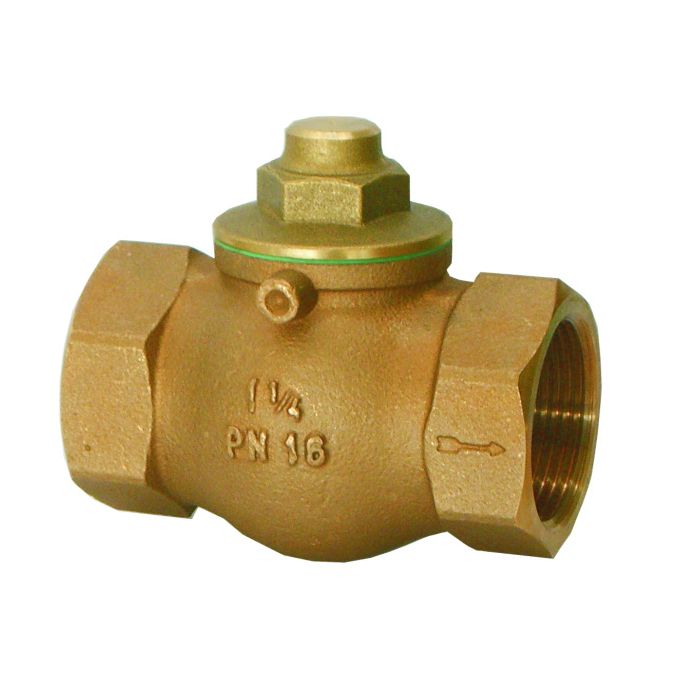

The product shown in the picture may differ from the product sold.
Check Valve DN10(3/8") H40
Article-No.: 05011.0300.9000
Price
POR
Description
Screwed non return valve G3/8 DN10 PN16 DIN 3845-2
working temperature up -10°C to + 80°C max. 16bar,
to +120°C max. 10bar,
to +160°C max. 6bar
body CC491K
cone CW614N
disc EPDM
spring 1.4310 st.st.
connection female thread G3/8
face to face 50mm
Height 40mm
working temperature up -10°C to + 80°C max. 16bar,
to +120°C max. 10bar,
to +160°C max. 6bar
body CC491K
cone CW614N
disc EPDM
spring 1.4310 st.st.
connection female thread G3/8
face to face 50mm
Height 40mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 05011.0300.9000 |
|---|---|
| Solution | Air Gases |
| Solution Area | Transport, Storage, Processes |
| HEROSE Type Reference | IN_05011_05012 |
| Type (Series) | 05011 |
| Maximum allowable temperature | -10.0 °C |
| Maximum allowable temperature | 80.0 °C |
| nominal size | DN 10 |
| Nominal pressure | PN 16 |
| body material | CC491K |
| Connection dimension inlet | 3/8'' |
| Connection dimension outlet | 3/8'' |
| Connection inlet | female thread BSPP |
| Connection outlet | female thread BSPP |
| Disc seal | EPDM |
Related Type
Datasheet ID: IN_05011_05012
Type 05011, Type 05012
Datasheet ID: IN_05011_05012
