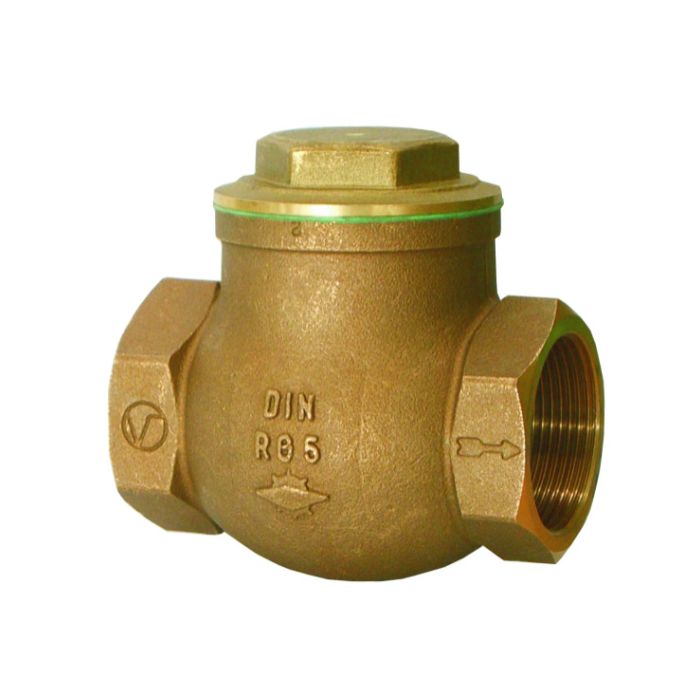

Check Valve DN50(2") H80
The product shown in the picture may differ from the product sold.
Check Valve DN50(2") H80
Article-No.: 05040.2000.0600
Price
POR
Description
check valve, swing type, PN16
sealing swing EPDM seal
working temperature
to max. 16bar -10°C (263K) to + 80°C (353K)
to max. 10bar -10°C (263K) to +120°C (393K)
to max. 6bar -10°C (263K) to +160°C (433K)
body CC491K bronze
swing CW614N brass
bonnet CW614N brass
connection female thread 2"BSPP
face to face 130mm
height 80mm
sealing swing EPDM seal
working temperature
to max. 16bar -10°C (263K) to + 80°C (353K)
to max. 10bar -10°C (263K) to +120°C (393K)
to max. 6bar -10°C (263K) to +160°C (433K)
body CC491K bronze
swing CW614N brass
bonnet CW614N brass
connection female thread 2"BSPP
face to face 130mm
height 80mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 05040.2000.0600 |
|---|---|
| Solution | Air Gases |
| Solution Area | Transport, Storage, Processes |
| HEROSE Type Reference | IN_05040 |
| Type (Series) | 05040 |
| Maximum allowable temperature | -10.0 °C |
| Maximum allowable temperature | 80.0 °C |
| nominal size | DN 50 |
| Nominal pressure | PN 16 |
| Kvs-value | 104.0 MQH |
| body material | CC491K |
| Connection dimension inlet | 2" |
| Connection dimension outlet | 2'' |
| Connection inlet | female thread BSPP |
| Connection outlet | female thread BSPP |
