Safety Valve DN15(1/2") d0 6

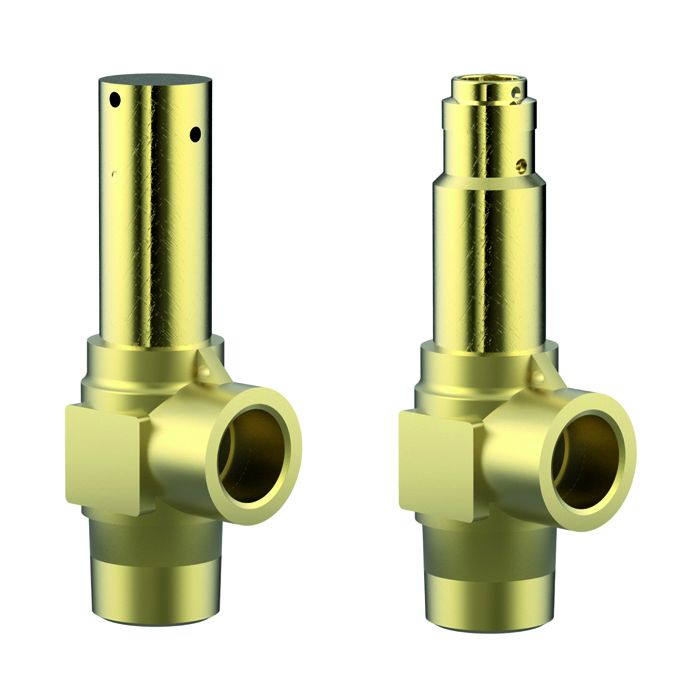

The product shown in the picture may differ from the product sold.
Safety Valve DN15(1/2") d0 6
Article-No.: 06002.0400.5000
Price
POR
Description
safety valve angle type, type tested
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +150°C
bonnet CW614N brass open without lifting device
inlet CW617N brass 1/2"NPT male thread
outlet CW617N brass 3/8"BSPT female thread
disc PTFE/Electrocarbon 25%
orifice 6.0mm
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +150°C
bonnet CW614N brass open without lifting device
inlet CW617N brass 1/2"NPT male thread
outlet CW617N brass 3/8"BSPT female thread
disc PTFE/Electrocarbon 25%
orifice 6.0mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06002.0400.5000 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_06002_06006 |
| Type (Series) | 06002 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 150.0 °C |
| Opening pressure difference | 10% |
| body material | CW617N |
| China approval | TSF700D36-2029 |
| Connection dimension inlet | 1/2'' |
| Connection dimension outlet | 3/8'' |
| Connection inlet | male thread NPT |
| Connection outlet | BSPT female thread |
| Canada approval | CRN 0G20613.5C |
| Pressure range BAR | 1,00 - 55,00 bar |
| Pressure range KPA | 100,00 - 5.500,00 kPa |
| Pressure range PSI | 14,50 - 797,50 PSI |
| Disc seal | K |
Related Type
Datasheet ID: CR_06002_06006
Type 06002, Type 06006
Datasheet ID: CR_06002_06006
