Type 06002, Type 06006

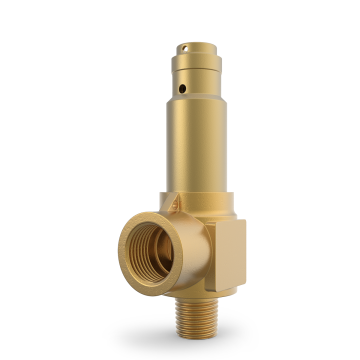

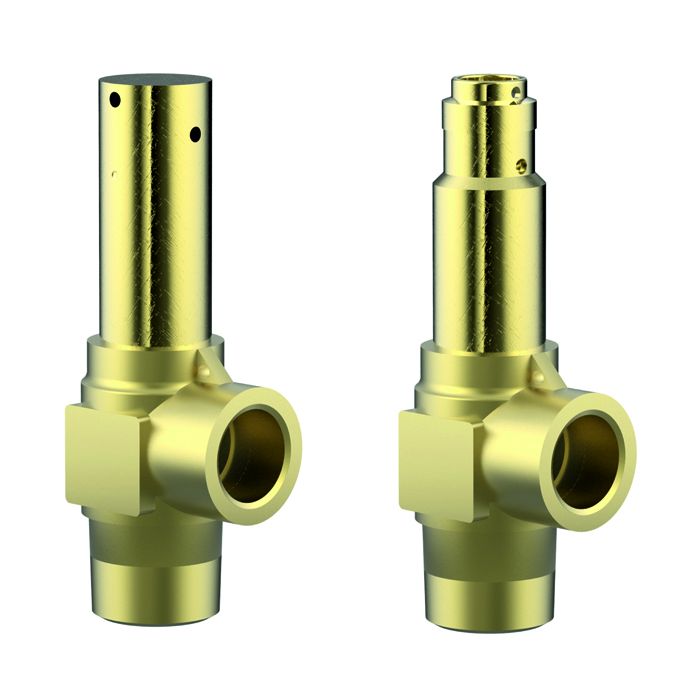

The product shown in the picture may differ from the product sold.
Field of application
Applications:
Provided as safety device for protection against thermal expansion in pipeworks and parts of facilities.
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +150°C / +302°F (423K), suitable for horizontal installation
Certificates
Transportable Pressure Equipment Directive (2010/35/EU)
EAC - Eurasian Conformity (010/2011)
EAC - Eurasian Conformity (032/2013)
ASME Code (ASME Code Section VIII)
Canadian Registration Number (CRN)
Pressure Equipment Directive (2014/68/EU)
Gost Ukraine (Gost Ukraine)
License of Special Equipment (China) (TS)
Gas Cylinder Rules 2016 (India) (GCR 2016)
Operating Instructions
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_06002_06006 |

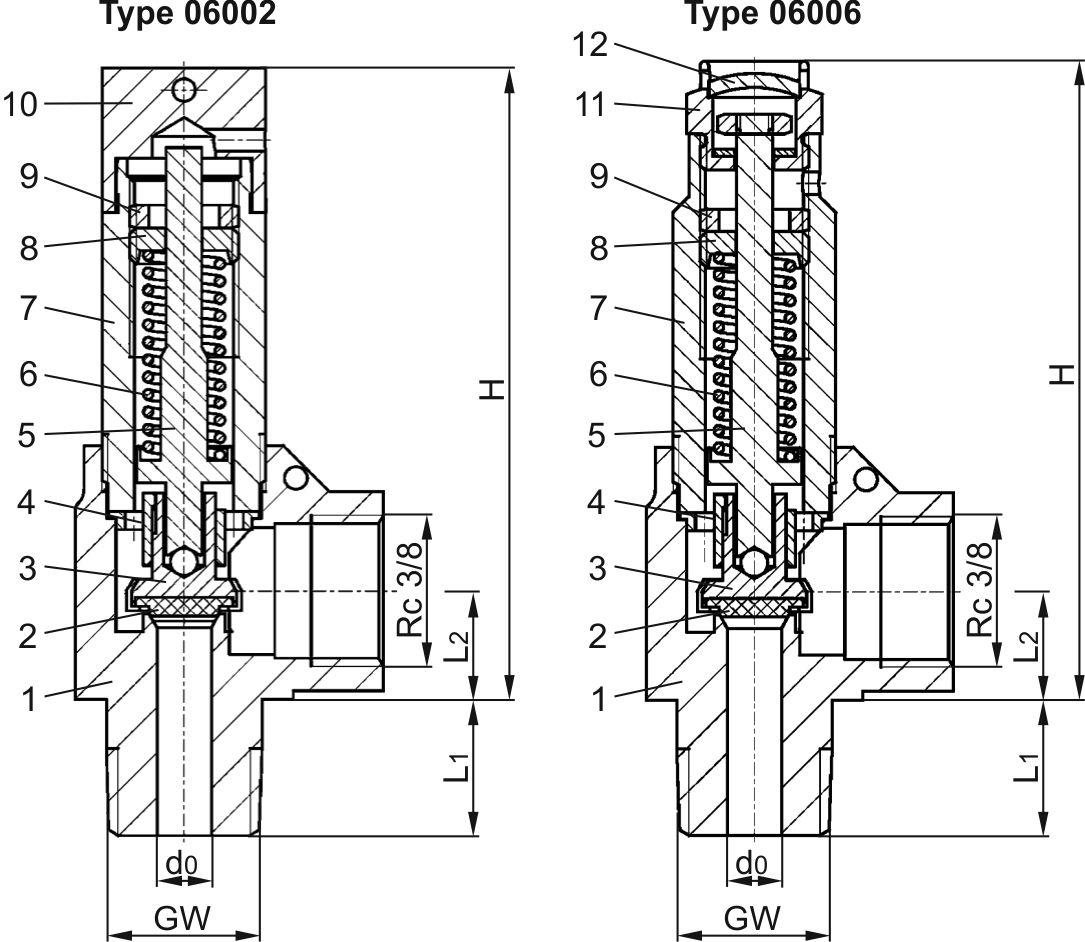

Materials |
DIN EN |
ASME/ASTM |
|
|---|---|---|---|
1 |
Body |
CW617N |
EN12165 CW617N Code Case 1750 |
2 |
Valve seal |
PTFE / Carbon filled (25%) |
|
3 |
Disc |
CW452K |
B 103 UNS C51900 |
4 |
Guide plate |
CC493K |
SB 505 C93200 |
5 |
Stem |
CW614N |
EN12164 CW614N Code Case 1750 |
6 |
Spring |
1.4571 |
A 313 Grade 316Ti |
7 |
Bonnet |
CW614N |
EN12164 CW614N Code Case 1750 |
8 |
Spring clamp |
CW614N |
EN12164 CW614N Code Case 1750 |
9 |
Thread ring |
CW614N |
EN12164 CW614N Code Case 1750 |
10 |
Cap |
CW614N |
EN12164 CW614N Code Case 1750 |
11 |
Lifting device |
CW614N |
EN12164 CW614N Code Case 1750 |
12 |
Closing cap |
CW507L |
B 30 UNS C27000 |
Technical data |
Type 06002 |
Type 06006 |
|||||
|---|---|---|---|---|---|---|---|
Nominal size |
GW |
1/4 |
3/8 |
1/2 |
1/4 |
3/8 |
1/2 |
Orifice |
d0 |
6.0 |
6.0 |
6.0 |
6.0 |
6.0 |
6.0 |
Dimension code |
.X. |
0200 |
0300 |
0400 |
0200 |
0300 |
0400 |
Set pressure range |
bar |
1.0-55.0 |
1.0-55.0 |
1.0-55.0 |
1.0-55.0 |
1.0-55.0 |
1.0-55.0 |
Height |
H |
70 |
70 |
70 |
72 |
72 |
72 |
Length |
L1 |
13 |
15 |
17 |
13 |
15 |
17 |
Length |
L2 |
13 |
13 |
13 |
13 |
13 |
13 |
Weight |
ca. kg |
0.185 |
0.20 |
0.22 |
0.18 |
0.195 |
0.21 |
Coeff. of discharge from 3.0 bar |
αw |
0.42 |
0.42 |
0.42 |
0.42 |
0.42 |
0.42 |
