Sicherheitsventil Za G1/4 - RC3/8

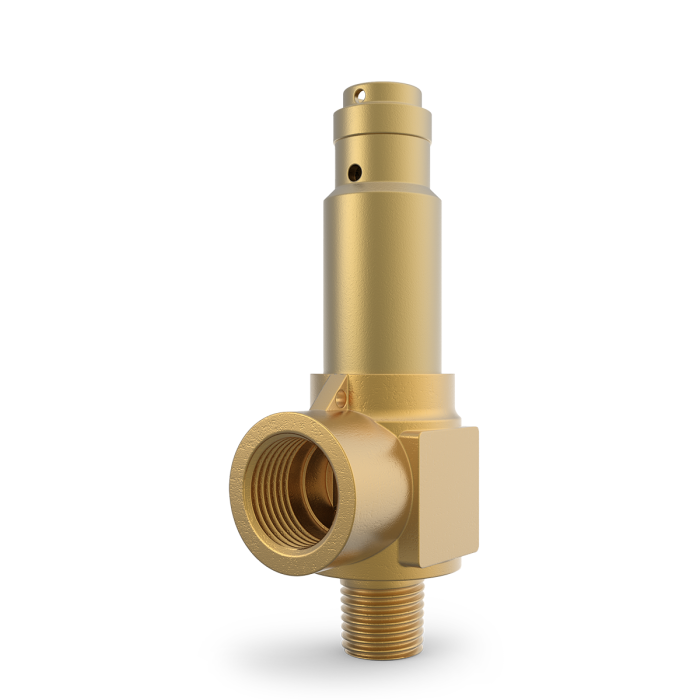

Click on the product image for a larger view.
Sicherheitsventil Za G1/4 - RC3/8
Article-No.: 06006.0200.2000
Price
POR
Description
safety valve angle type, type tested
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +150°C
bonnet CW614N brass open with lifting device
inlet CW617N brass 1/4"BSPP male thread
outlet CW617N brass 3/8"BSPT female thread
disc PTFE/Electrocarbon 25%
orifice 6.0mm
for cryogenic gases
cleaned and degreased for oxygen services
working temperature -196°C up to +150°C
bonnet CW614N brass open with lifting device
inlet CW617N brass 1/4"BSPP male thread
outlet CW617N brass 3/8"BSPT female thread
disc PTFE/Electrocarbon 25%
orifice 6.0mm
Delivery Time:
4 week(s)
More Information
| SKU | 06006.0200.2000 |
|---|---|
| Delivery Time | 4 |
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| Type (Series) | 06006 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 150.0 °C |
| Opening pressure difference | 10% |
| body material | CW617N |
| China approval | TSF700D36-2025 |
| Connection dimension inlet | 1/4'' |
| Connection dimension outlet | 3/8'' |
| Connection inlet | male thread BSPP |
| Connection outlet | BSPT female thread |
| Canada approval | CRN 0G20613.5C |
| Pressure range BAR | 1,00 - 55,00 bar |
| Pressure range KPA | 100,00 - 5.500,00 kPa |
| Pressure range PSI | 14,50 - 797,50 PSI |
