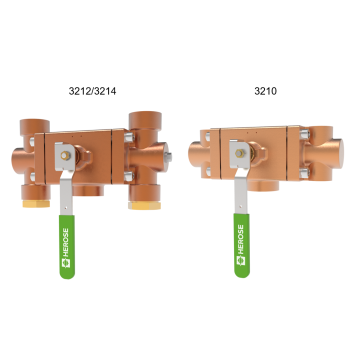

Changeover Ball Valve DN32(1 1/4")
Click on the product image for a larger view.
Changeover Ball Valve DN32(1 1/4")
Article-No.: 06510.3210.9320
Price
POR
Description
Cryogenic Changeover Ball Valve DN32 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet 11/2"BSPP female thread
outlet top 2x 1"BSPP female thread ocking sleeve
bursting disc connection 2x 1"BSPP female thread
with screw plug
outlet bottom 2x 1/4"BSPP with screw plug
mounting hole 2x M12
face to face 300mm
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet 11/2"BSPP female thread
outlet top 2x 1"BSPP female thread ocking sleeve
bursting disc connection 2x 1"BSPP female thread
with screw plug
outlet bottom 2x 1/4"BSPP with screw plug
mounting hole 2x M12
face to face 300mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06510.3210.9320 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_06510_3 |
| Type (Series) | 06510 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 32 |
| Nominal pressure | PN 50 |
| Kvs-value | 16.7 MQH |
| body material | CC491K |
| CV-Value | 19,4 gal/min |
| China approval | TS2700G39-2025 |
| Connection dimension inlet | 1.1/2'' |
| Connection dimension outlet | 1'' |
| Connection inlet | female thread BSPP |
| Connection outlet | female thread BSPP |
| Canada approval | CRN 0C20592.5C |
