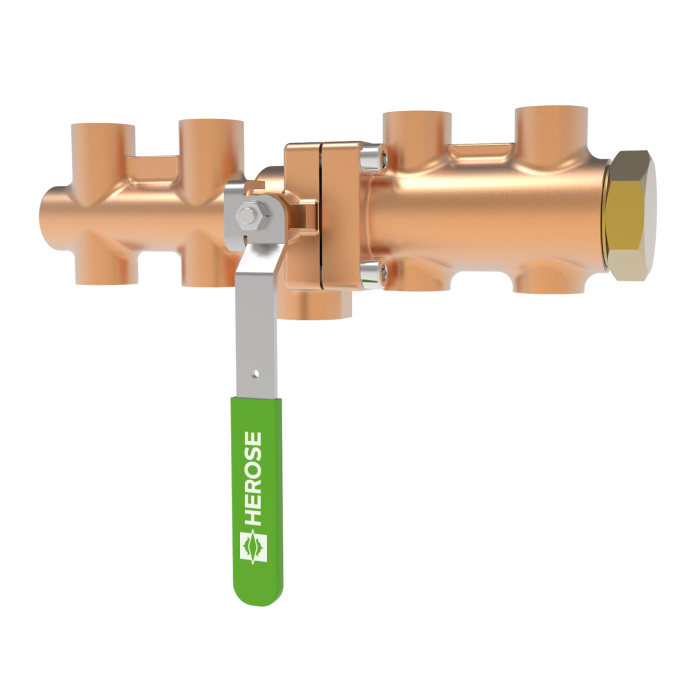

Changeover Ball Valve DN20(3/4")
Click on the product image for a larger view.
Changeover Ball Valve DN20(3/4")
Article-No.: 06512.2060.9127
Price
POR
Description
Cryogenic Changeover Ball Valve DN20 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet 1.4301 st.st. union type fitting
OD 33.7mm x 2.6mm / 1"S10
outlet CW614N/nickel plated
4x 3/4"BSPP female thread locking sleeve
bursting disc/test connection 4x 1/2"BSPP female thread
with screw plug
test connection 2x 1/4"BSPP female thread
with screw plug
mounting hole 2x M10
face to face 345mm
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet 1.4301 st.st. union type fitting
OD 33.7mm x 2.6mm / 1"S10
outlet CW614N/nickel plated
4x 3/4"BSPP female thread locking sleeve
bursting disc/test connection 4x 1/2"BSPP female thread
with screw plug
test connection 2x 1/4"BSPP female thread
with screw plug
mounting hole 2x M10
face to face 345mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06512.2060.9127 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_06512 |
| Type (Series) | 06512 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 20 |
| Nominal pressure | PN 50 |
| Kvs-value | 7.7 MQH |
| body material | CC491K |
| CV-Value | 9,2 gal/min |
| Connection dimension inlet | 33,7 x 2,6 / 1'' S10 |
| Connection dimension outlet | 3/4'' |
| Connection inlet | SCHWEIßKUGELBUCHSE |
| Connection outlet | female thread BSPP |
| Canada approval | CRN 0C20592.5C |
Related Type
Datasheet ID: CR_06512
