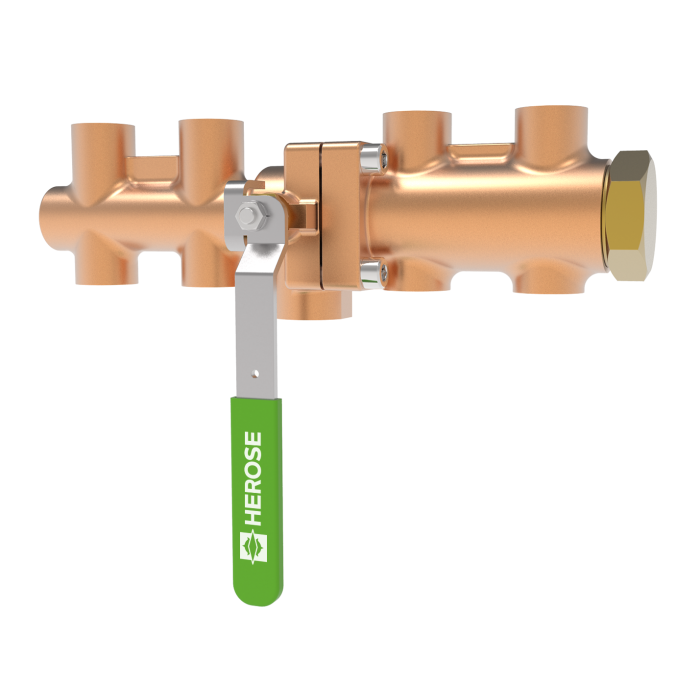

Type 06512 - Diverter Valve

Datasheet ID: CR_06512
Field of application

Important:

The valves must be fixed at the

provided threads M10.

Spare part kit for lever replacement:

For Change-over Valves 0651X,

there is a spare part kit available for

replacing the lever (also suitable for

versions before 07/2024).

DN20 30320.0200.0783

DN32 30320.0320.0783

Certificates
EAC - Eurasian Conformity (010/2011)
type-examination for LNG (DIN EN 12567)
Gost Ukraine (Gost Ukraine)
Operating Instructions
More Information
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling
SKU CR_06512

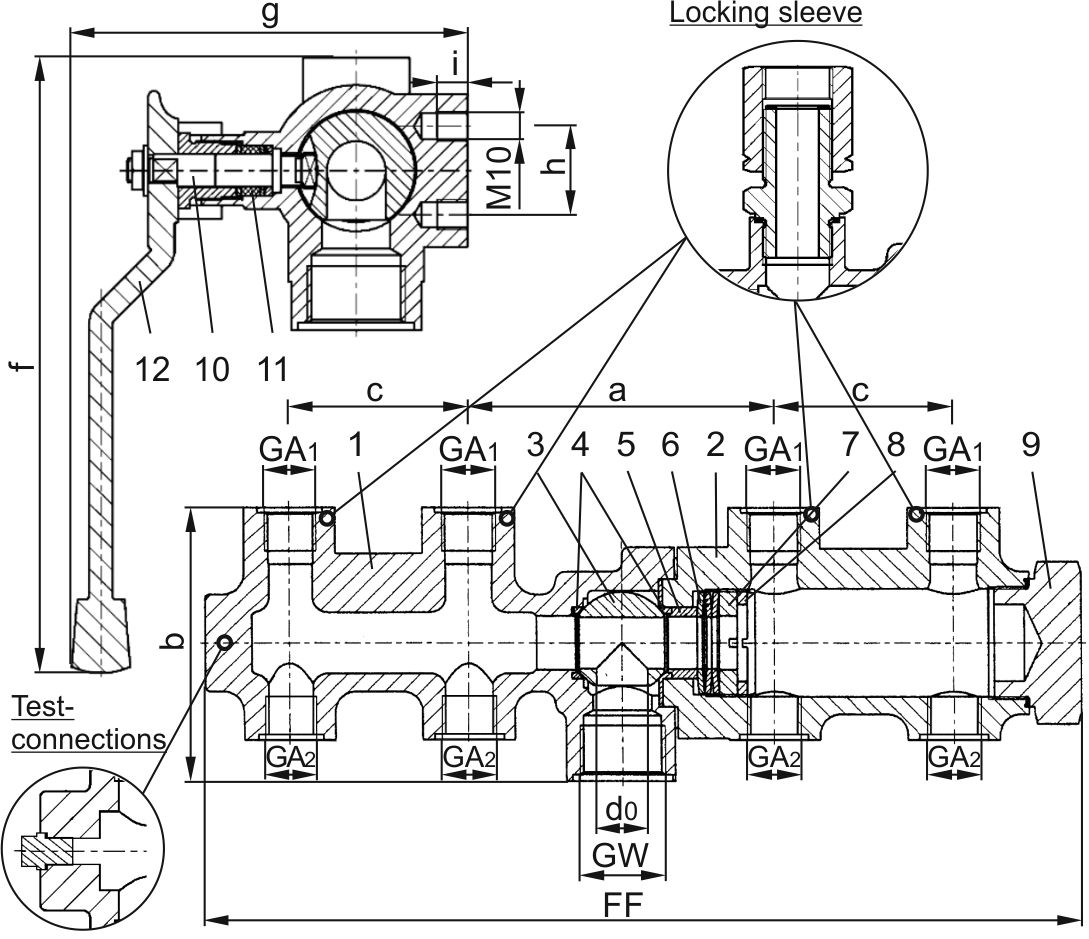

Materials

Materials

DIN EN

ASTM

1

Body I

CC491K

B 62 UNS C83600

2

Body II

CC491K

B 62 UNS C83600

3

Ball

1.4571

A 276 Grade 316Ti

4

Seat rings

PCTFE

5

Bush

CW614N

B 283 UNS C38500

6

Spring plates

1.4571

A 313 Grade 316Ti

7

Spring clamp

CW614N

B 283 UNS C38500

8

Thread ring

CW614N

B 283 UNS C38500

9

Plug

CW614N

B 283 UNS C38500

10

Stem

1.4301

A 276 Grade 304

11

Gland packing

Graphit / PTFE

12

Lever

CC491K

B 62 UNS C83600
Versions

Type 06512 - Standard design

Technical data

Nominal size

DN

20

20

Dimension code

.X.

2004

2006

Flow diameter

d0

20

20

Inlet

GW

1

1

Outlet

GA1

1/2

3/4

Outlet

GA2

1/2

1/2

Face-to-face dimension

FF

345

345

Length

a

120

120

Height

b

107

107

Length

c

70

70

Length

f

223

223

Length

g

134

134

Length

h

30

30

Thread depth

i

10

10

Weight

ca. kg

7.2

7.1

Kvs - Value, one side open

m³/h

7.7

7.7

Cv - Value, one side open

gal /min

9.2

9.2
