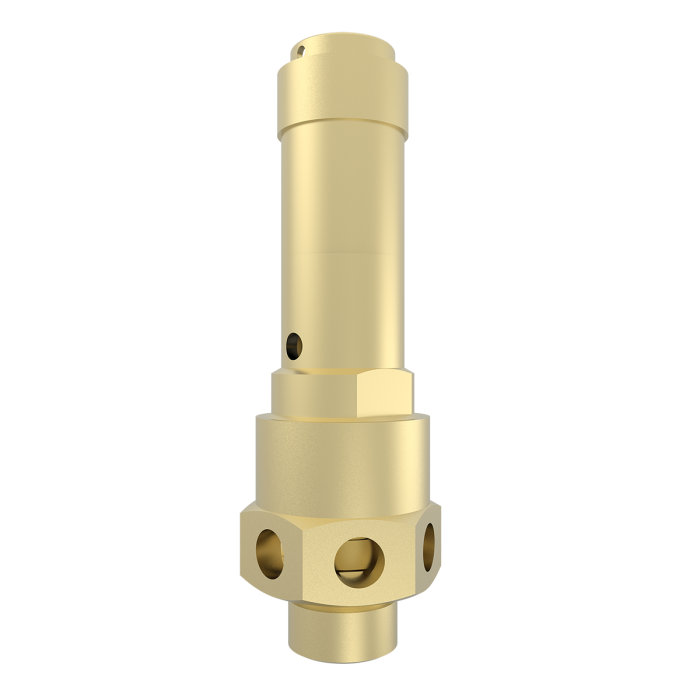

Safety Valve DN8(1/4") d0 8
The product shown in the picture may differ from the product sold.
Safety Valve DN8(1/4") d0 8
Article-No.: 06C02.A001.000008
Price
POR
Description
Safety Valve, type tested
for air and similar gases
working temperature -20°C till +160°C
bonnet CW614N brass open with lifting device
inlet CW614N brass 1/4''BSPP male thread
outlet CW614N brass with discharge holes
disc FPM (Viton)
orifice 8
spring 1.4571
for air and similar gases
working temperature -20°C till +160°C
bonnet CW614N brass open with lifting device
inlet CW614N brass 1/4''BSPP male thread
outlet CW614N brass with discharge holes
disc FPM (Viton)
orifice 8
spring 1.4571
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06C02.A001.000008 |
|---|---|
| Solution | Air Gases, Industry |
| Solution Area | Storage, Processes, Compressed Air, Steam, FKS |
| HEROSE Type Reference | IN_06C02 |
| Type (Series) | 06C02 |
| Maximum allowable temperature | -20.0 °C |
| Maximum allowable temperature | 160.0 °C |
| Opening pressure difference | 10% |
| body material | CW614N |
| Connection dimension inlet | 1/4'' |
| Connection inlet | male thread BSPP |
| Pressure range BAR | 4,60 - 5,99 bar |
| Pressure range KPA | 460,00 - 599,00 kPa |
| Pressure range PSI | 66,72 - 86,88 PSI |
| Disc seal | FPM |
