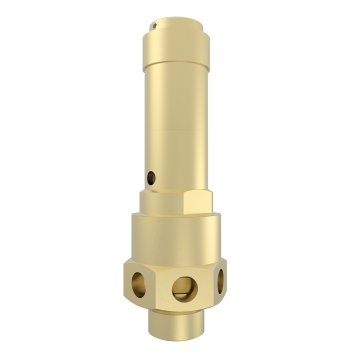

Type 06C02

Datasheet ID: IN_06C02
Field of application

Applications:

Provided as safety device for protection against excessive pressure in stationary and

moveable gas cylinders and pressure vessels. Approved for air and similar gases.

Working temperature with FPM sealing: -20°C / -4°F (253K) up to +160°C / +320°F (433K)

Certificates
Pressure Equipment Directive (2014/68/EU)
TÜV Verband (Approval mark number)
More Information
Solution Air Gases, Industry
Solution Area Storage, Processes, Compressed Air, Steam, FKS
SKU IN_06C02

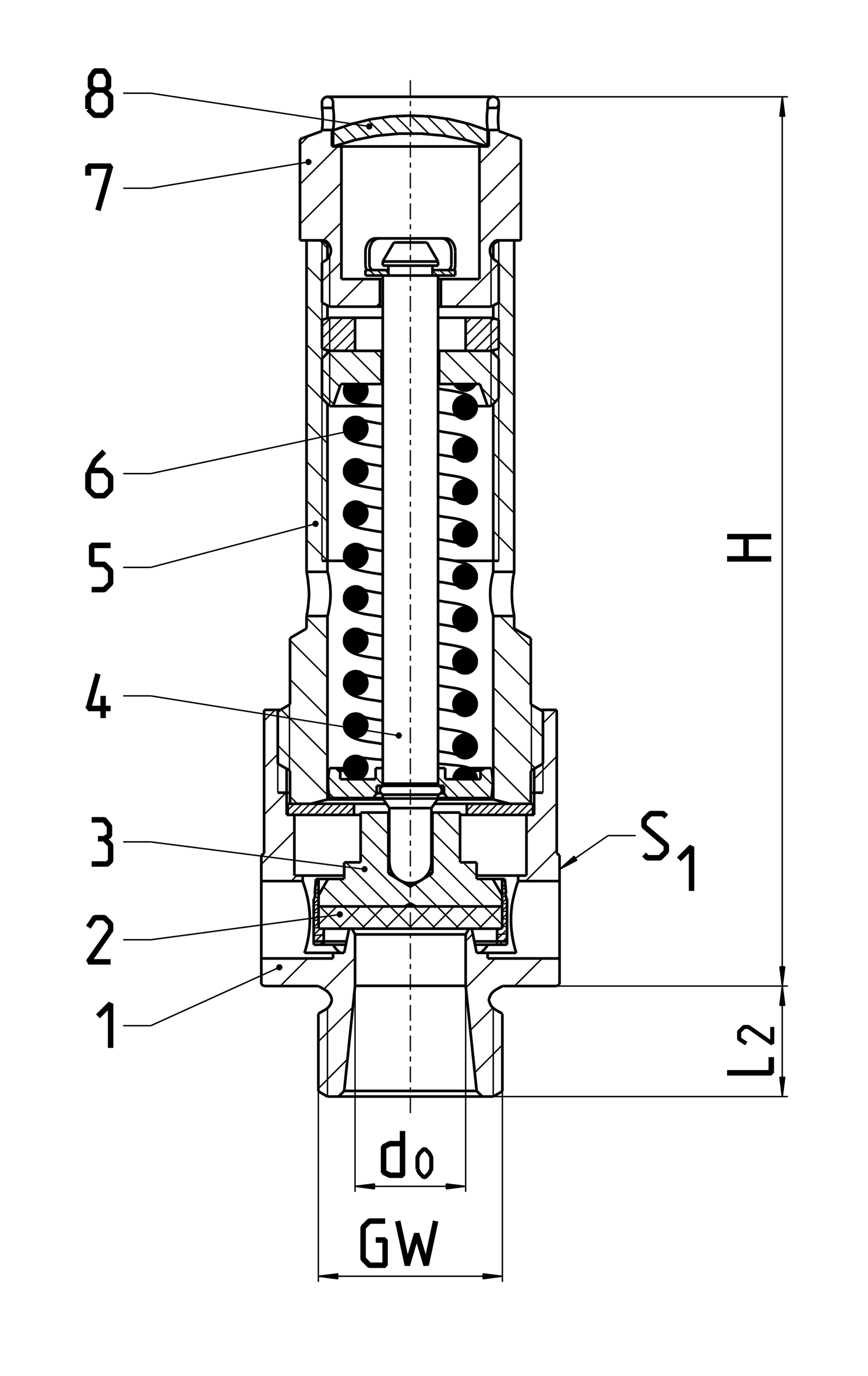

Materials

Materials

DIN EN

ASME/ASTM

1

Body

CW614N

B 249 UNS C38500

2

Valve seal

FPM (Viton)

3

Disc

CW614N

B 249 UNS C38500

4

Stem

1.4301

SS304

5

Bonnet

CW614N

B 249 UNS C38500

6

Spring

1.4571/1.1200

SS316L/A 227

7

Lifting device

CW614N

B 249 UNS C38500

8

Closing cap

CW507L

B 36 UNS C26800

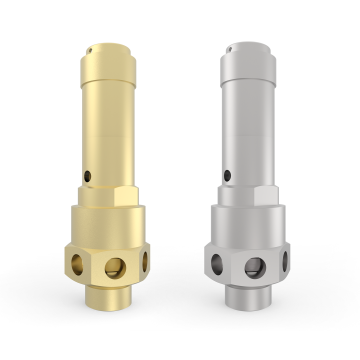

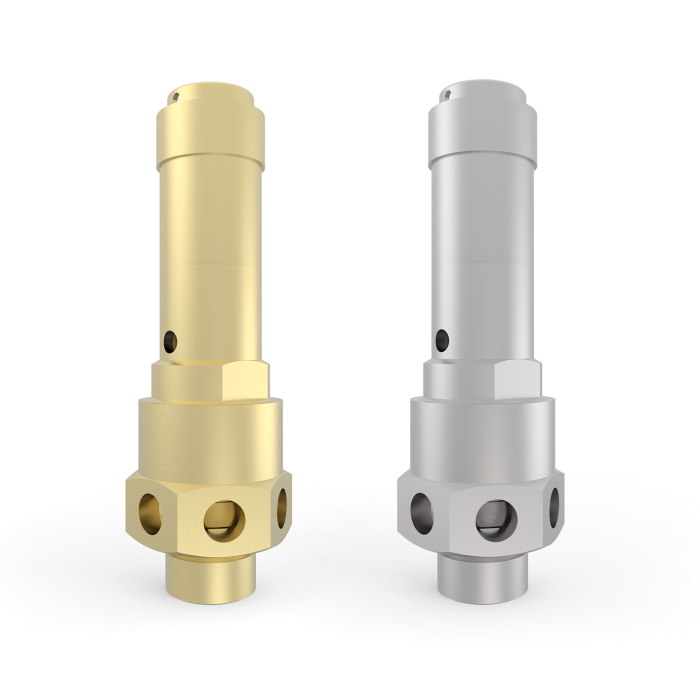

Versions

Type 06C02

Technical data

Nominal size

GW

1/4

3/8

1/2

3/8

1/2

3/4

3/4

1

Orifice

d0

8

8

8

10

10

10

15

18

Set pressure range

bar

0.2-50

0.2-50

0.2-50

0.2-42

0.2-42

0.2-42

0.2-16

0.2-20

Height

H

78

78

78

81

81

81

92

110

Length

L2

10

10

12

10

12

15

15

18

Wrench size across flats

S1

21

21

27

27

27

32

32

41

Weight

ca. kg

0.14

0.15

0.18

0.18

0.20

0.25

0.31

0.53

Coeff. of discharge from 3.0 bar*

αw

0.70

0.70

0.70

0.61

0.61

0.61

0.60

0.60
